Apply a thin coat of Molykote M7439 (Part No. K0770YA000) or grease contained in the pad kit to the support.

Fig 1: Applying Thin Coat Of Molykote M7439 (Part No. K0770YA000) Or Grease Contained In Pad Kit To Support
Courtesy of SUBARU OF AMERICA, INC.
Install the support to the housing.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Apply a thin coat of Molykote M7439 (Part No. K0770YA000) or grease contained in the pad kit to the pad clip.

Fig 2: Applying Thin Coat Of Molykote M7439 (Part No. K0770YA000) Or Grease Contained In Pad Kit To Pad Clip
Courtesy of SUBARU OF AMERICA, INC.
Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit to both surfaces of the inner shim.

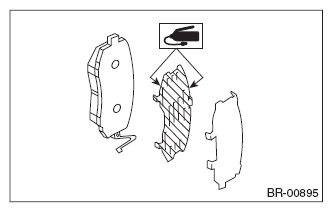

Fig 3: Applying Thin Coat Of Molykote AS880N (Part No. K0777YA010) Or Grease Contained In Pad Kit To Both Surfaces Of Inner Shim
Courtesy of SUBARU OF AMERICA, INC.
Install the pad to support.
NOTE: Install the pad indicator in proper direction.
