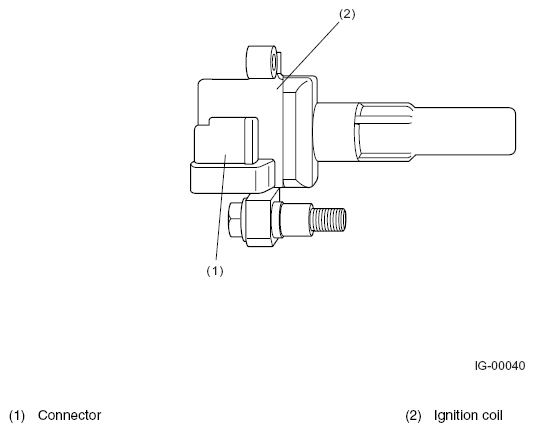

Ignition Coil
The engine uses a direct ignition system with one ignition coil mounted for each cylinder.
The secondary terminal of the ignition coil is in contact with the spark plug terminal. Since no spark plug cable is used, secondary voltage drop, short circuit at connections, or other problems that are inherent in a system using spark plug cables do not occur. The result is high reliability.
