2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Diode (2.5 L Model)
CAUTION:
There is the possibility of damaging the diodes if a mega-tester (used to measure high voltages) or a similar measuring instrument is used. Never use a mega tester or equivalent for this test.

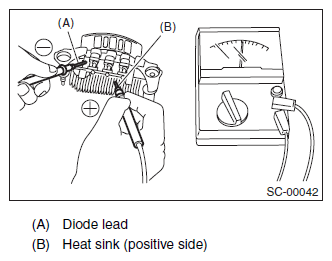

- Check for continuity between the diode lead and positive side heat sink. If resistance is 1 Ξ© or more only in the direction from the diode lead to the heat sink, replace the rectifier.

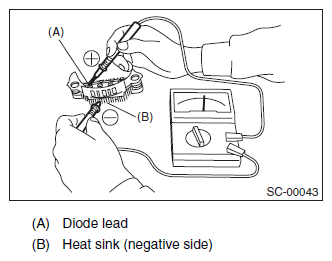

- Check for continuity between the negative side heat sink and diode lead. If resistance is 1 Ξ© or more only in the direction from the heat sink to the diode lead, replace the rectifier.
