2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

2.5 L Model

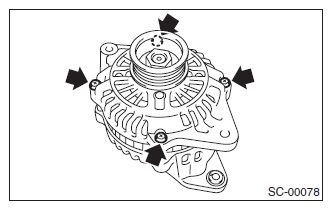

Remove the four through bolts.

Fig 1: Locating Four Through Bolts
Courtesy of SUBARU OF AMERICA, INC.

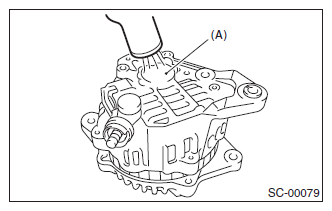

Use a drier to heat the rear cover (A) portion to 50°C (122°F).

Fig 2: Identifying Rear Cover
Courtesy of SUBARU OF AMERICA, INC.

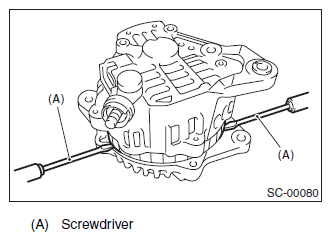

Insert the end of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Identifying Screwdriver Inserted Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

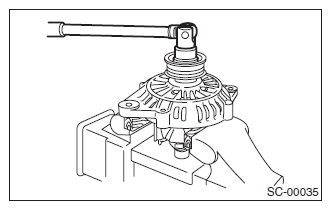

Using a vise, support the rotor and remove the pulley bolt.

Fig 4: Identifying Rotor And Pulley Bolt
Courtesy of SUBARU OF AMERICA, INC.
