2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

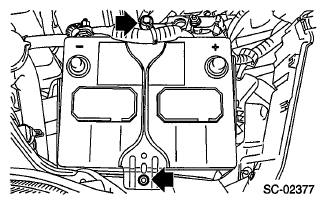

Starting/Charging Systems (H4SO): Battery: Removal
- After disconnecting the battery ground terminal, remove the terminal cover, then disconnect the positive terminal.
- Remove the battery cable holder from the battery rod.
- Remove flange nut from the battery rod and remove battery holder.
- Remove the battery.
