2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Front Axle: Assembly
- Assemble the front hub unit bearing. Refer to ASSEMBLY , Front Hub Unit Bearing.

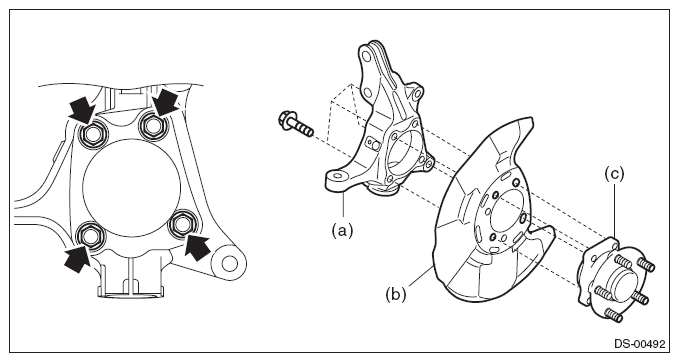

- Install the front axle housing (a) and front hub unit bearing (c) to the disc brake cover (b) as shown in the figure, and tighten the bolt.
Tightening torque:
65 N.m (6.63 kgf-m, 47.9 ft-lb)
CAUTION:
- Do not get closer the tool which charged magnetism to magnetic encoder.
- Be careful not to damage the magnetic encoder.
