2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Relay and Fuse: Location

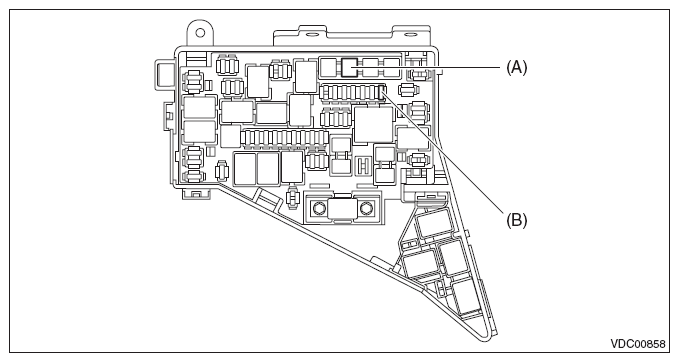

| Main fuse box | Fuse 40 A (VDC CM & H/U) | (A) |
| Fuse 30 A (VDC CM & H/U) | (B) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS
or SYSTEM WIRING DIAGRAMS
.
