2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Rear Quarter Glass: Installation

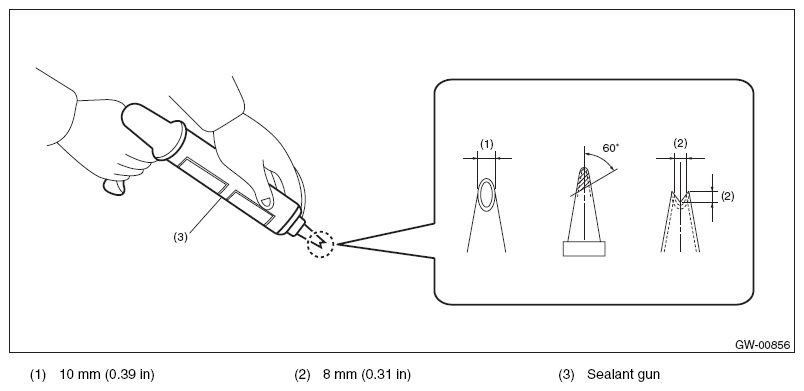

- Cut the cartridge nozzle tip as shown in the figure, and set the adhesive in the sealant gun.
- Prepare and clean the adhesion surfaces of the glass and body using the same procedures as for the windshield glass. Refer to , INSTALLATION , Windshield Glass.

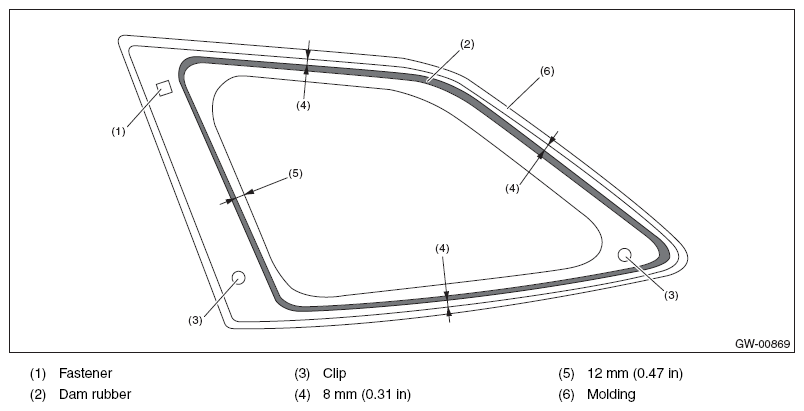

- Attach the dam rubber to the glass.
- Install the rear quarter glass in the same procedure as for windshield glass. Refer to
, INSTALLATION , Windshield Glass.
- Using a sponge, apply primer to the glass side and body side adhesive surfaces.
- Apply adhesive to the glass end back surface.NOTE: Use the molding terminal as a reference.
