2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

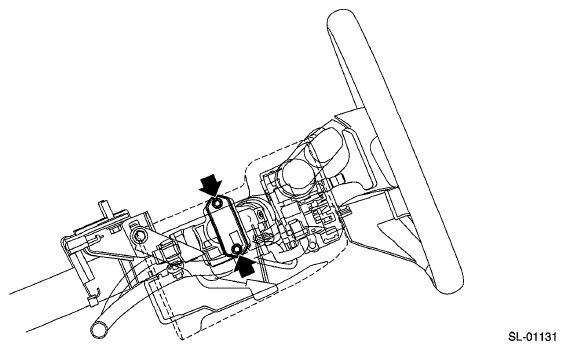

Ignition Key Lock: Replacement
- Disconnect the ground cable from battery.
- Remove the steering column. Refer to STEERING COLUMN .
- Remove the ignition key lock.
- Secure the steering column in a vise.
- Drill out the bolts and remove the ignition key lock.
- Install the ignition key lock.
- Secure the ignition key lock to the steering column.
- Use new bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
