2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Ignition Key Lock: Inspection

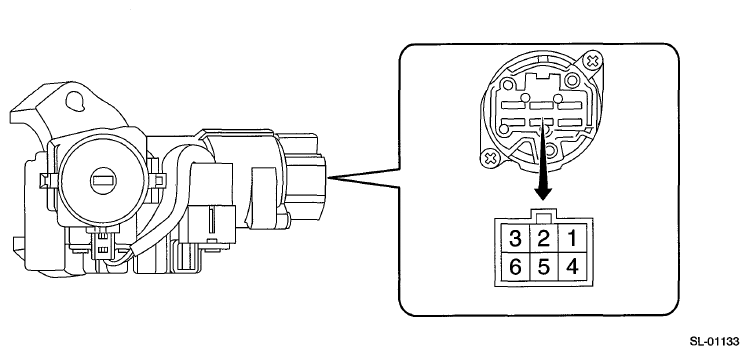

- Disconnect the ignition switch connector.
- Measure the resistance between ignition switch terminals.
Preparation tool: Circuit testerΒ
Terminal No. Inspection Conditions Specification - LOCK - 3 - 5 ACC Less than 1 Ξ© 3 - 1, 4
3 - 5ON Less than 1 Ξ© 3 - 2, 6
3 - 1, 4ST Less than 1 Ξ© - Replace the ignition switch if the inspection result is not within the standard value.
