2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Transmission Mounting System: Removal
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the center exhaust pipe. Refer to CENTER EXHAUST PIPE EX(H4SO)-7, REMOVAL, Center Exhaust Pipe.
- Remove the heat shield cover.
- Set the transmission jack under the transmission. Make sure that the support plate of transmission jack does not touch the oil pan.

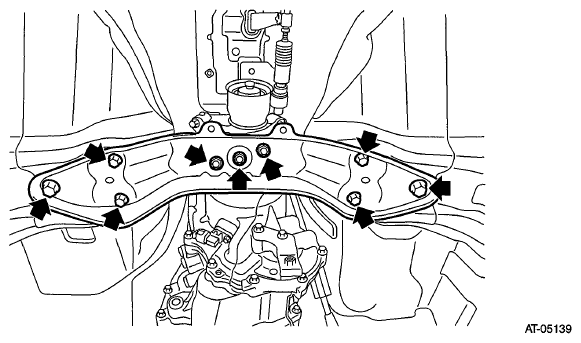

- Remove the transmission rear crossmember.
- Remove the rear cushion rubber.
