2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Transmission Case: Disassembly

  1. Remove the CVTF inlet pipe and CVTF outlet pipe.

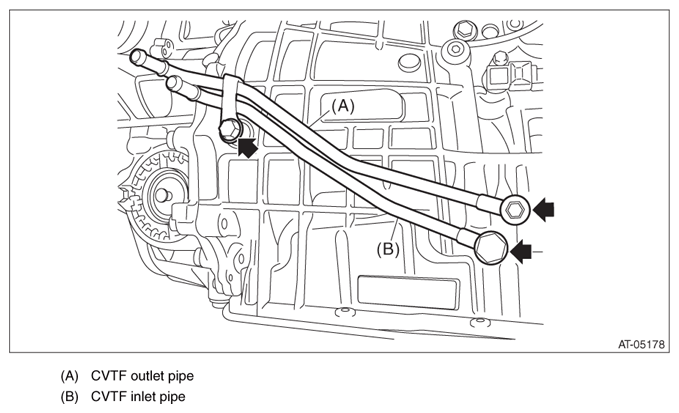

    Fig 1: Identifying CVTF Outlet Pipe And CVTF Inlet Pipe
    G07913574Courtesy of SUBARU OF AMERICA, INC.
  2. Remove all plugs from the transmission case.

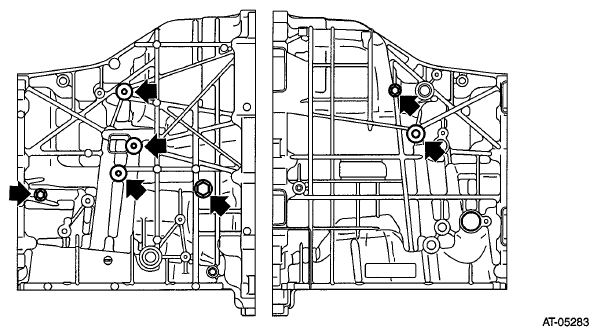

    Fig 2: Identifying Plugs On Transmission Case
    G06654630Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the lubrication pipe.

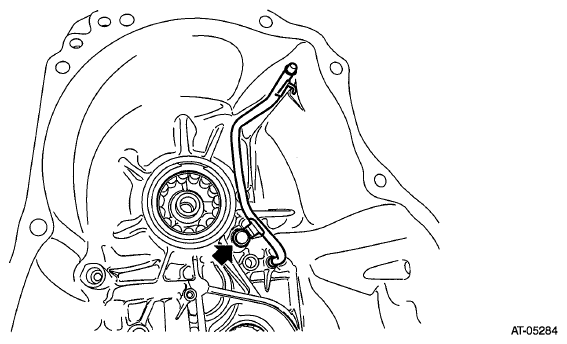

    Fig 3: Locating Lubrication Pipe Mounting Nut
    G06654631Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil seal using a screwdriver wrapped with cloth etc.
    Fig 4: Locating Oil Seal
    G06654632Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ball bearing from reduction driven gear using ST.

    ST 398527700 PULLER ASSY

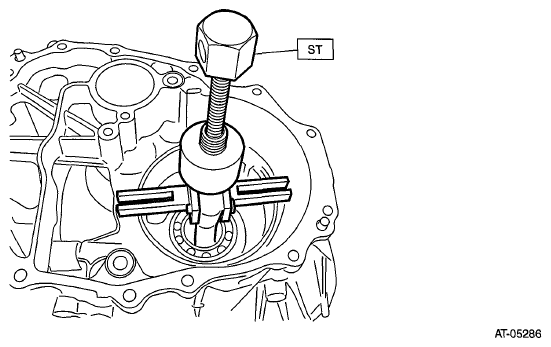

    Fig 5: Identifying Ball Bearing With Puller ASSY On Reduction Driven Gear
    G06654633Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap ring on primary pulley side.

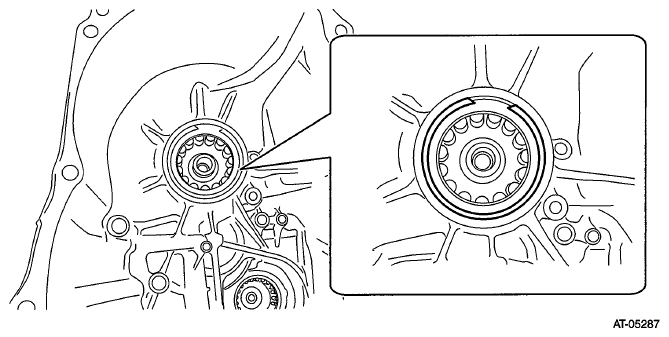

    Fig 6: Identifying Snap Ring On Primary Pulley Side
    G06654634Courtesy of SUBARU OF AMERICA, INC.
  7. Using the ST, remove the roller bearing on primary pulley side.
    NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

    ST 398527700 PULLER ASSY

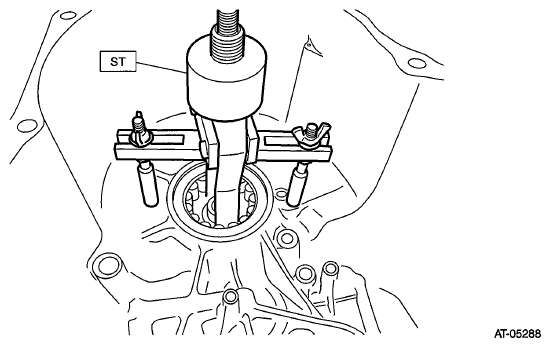

    Fig 7: Identifying Roller Bearing With Puller ASSY On Primary Pulley Side
    G06654635Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the snap ring on secondary pulley side.

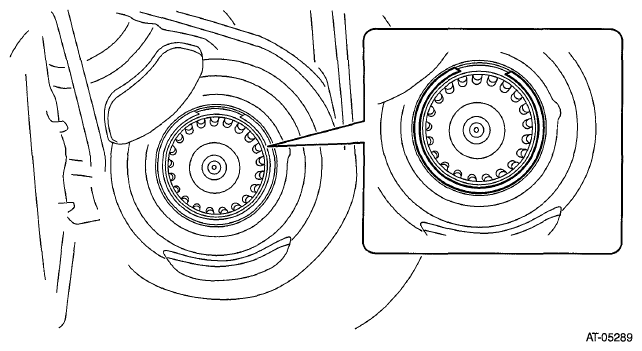

    Fig 8: Identifying Snap Ring On Secondary Pulley Side
    G06654636Courtesy of SUBARU OF AMERICA, INC.
  9. Using the ST, remove the roller bearing on secondary pulley side.
    NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

    ST 398527700 PULLER ASSY

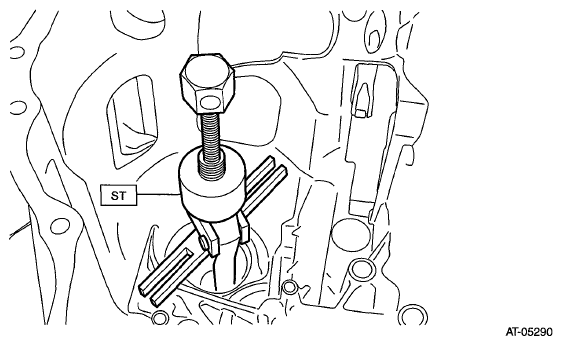

    Fig 9: Identifying Roller Bearing With Puller ASSY On Secondary Pulley Side
    G06654637Courtesy of SUBARU OF AMERICA, INC.
