2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Transfer Reduction Driven Gear: Assembly

Install the new ball bearing (large) to reduction driven gear using the ST.
ST 499277100 REMOVER
NOTE:
- Use a new ball bearing.
- Install to the splines inside transfer reduction driven gear shaft.

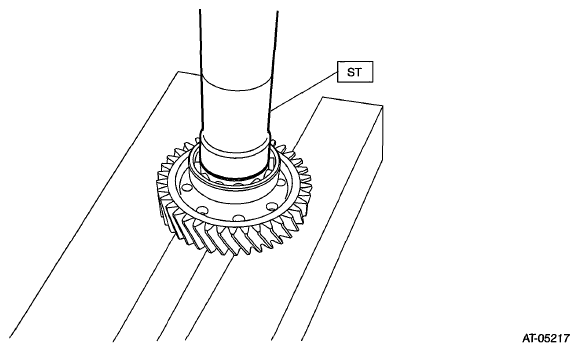

  Fig 1: Identifying Ball Bearing (Large) With Reduction Driven Gear
  Courtesy of SUBARU OF AMERICA, INC.
Install the new ball bearing (small) to reduction driven gear.
NOTE: Use a new ball bearing.

ST 499277100 REMOVER

Fig 2: Identifying Ball Bearing (Small) With Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
