Transfer Clutch: Disassembly

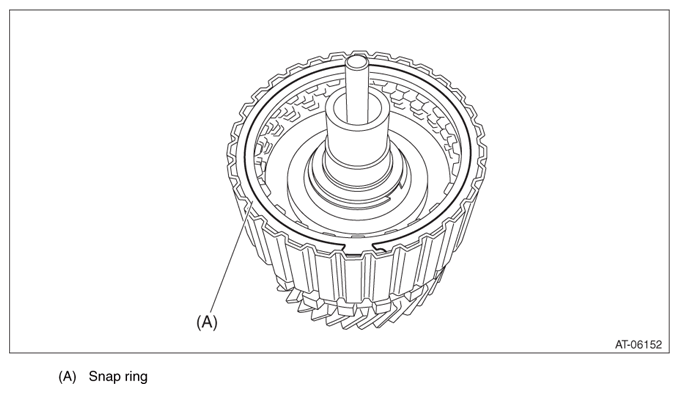

- Remove the snap ring, and then remove the retaining plate, drive plate and driven plate.

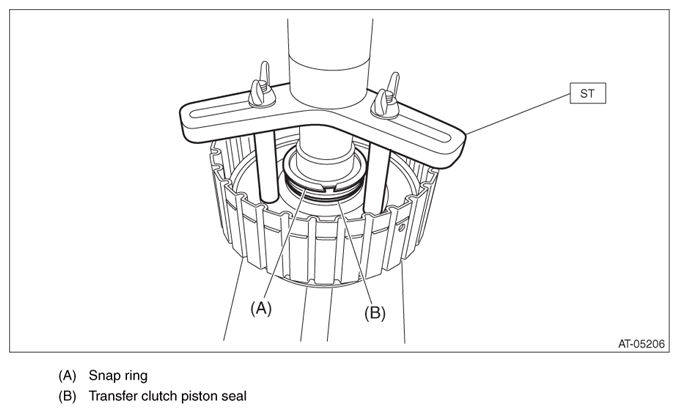

- Using the ST, remove the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL
- Remove the transfer clutch piston seal.
- Remove the return spring.
- Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.NOTE: Block the hole opposite to the one to be blown with compressed air by your finger.
