2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Secondary Speed Sensor: Removal
CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
- Remove the transmission from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.

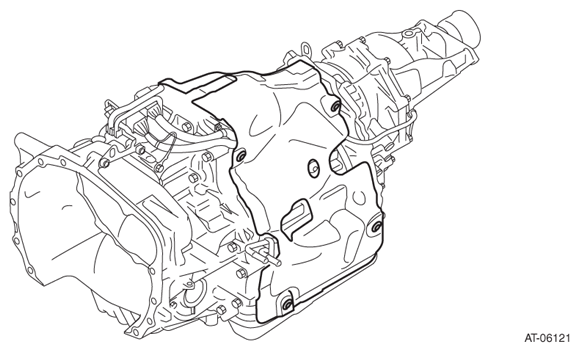

- Remove the transmission cover on the transmission upper side.

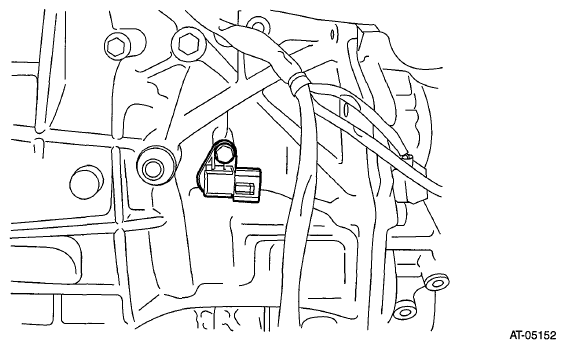

- Remove the harness connector from secondary speed sensor.
- Remove the secondary speed sensor.
