Reduction Driven Gear: Disassembly

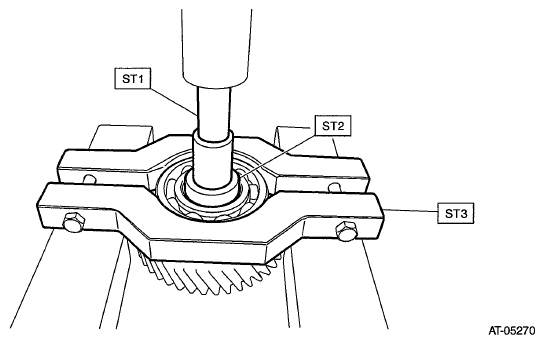

- Remove the bearing retainer using ST1, ST2 and ST3.
ST1 899864100 REMOVER
ST2 398497701 SEAT
ST3 18767AA000 REMOVER

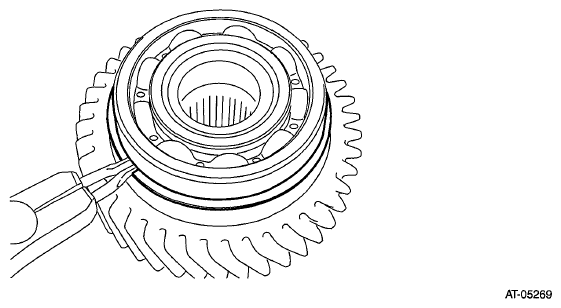

- Remove the snap ring.

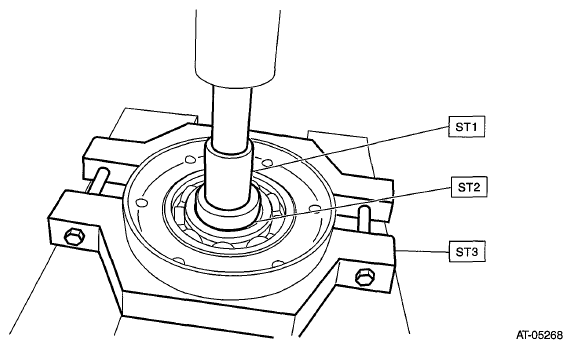

- Remove the ball bearing using ST1, ST2 and ST3.
ST1 899864100 REMOVER
ST2 398497701 Seat
ST3 498077600 REMOVER
