Primary Speed Sensor: Inspection
- Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER EI-63, REMOVAL, Instrument Panel Lower Cover.

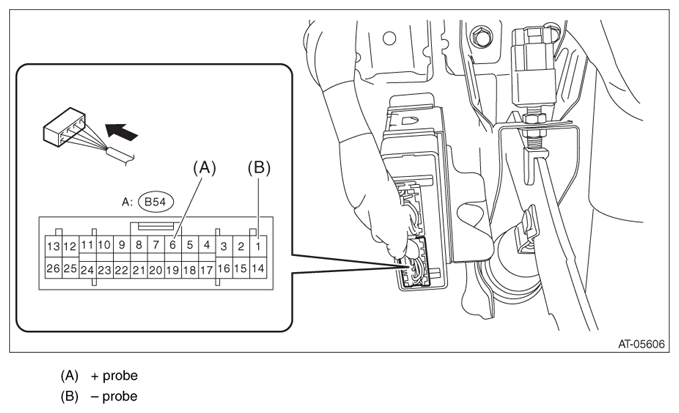

- Set the probe of oscilloscope to TCM harness connector.
Connector & terminal
(B54) No. 6 (+) - No. 1 (-):
- Start and warm up the engine.

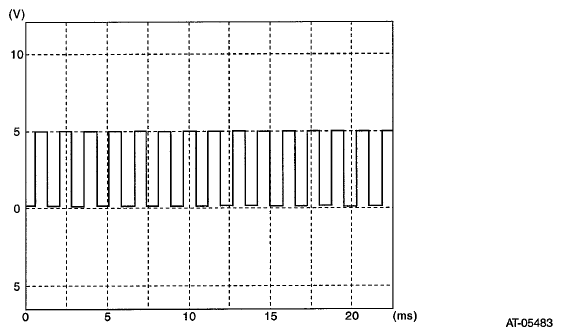

- Check the waveform of primary speed sensor with engine idling.
