2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Preparation for Overhaul: Procedure
- Clean the transmission exterior.
- Remove the torque converter assembly. Refer to , TORQUE CONVERTER ASSEMBLY .

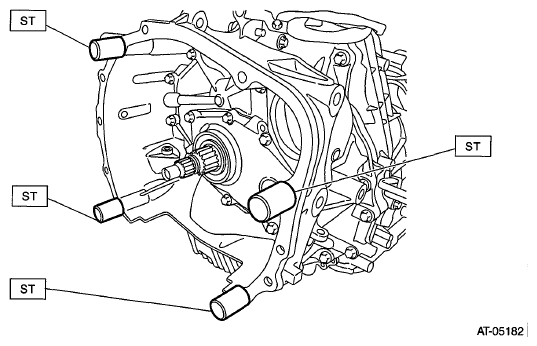

- Attach the ST on the transmission.
ST 18632AA000 STAND ASSY
- Remove the transmission cover on the transmission upper side.NOTE: Install using the following tightening torque.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
- Place the transmission assembly on end.
