2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Inhibitor Switch: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. Refer to CENTER EXHAUST PIPE EX(H4SO)-7, REMOVAL, Center Exhaust Pipe.
  5. Remove the snap pin and washer from the shifter arm.

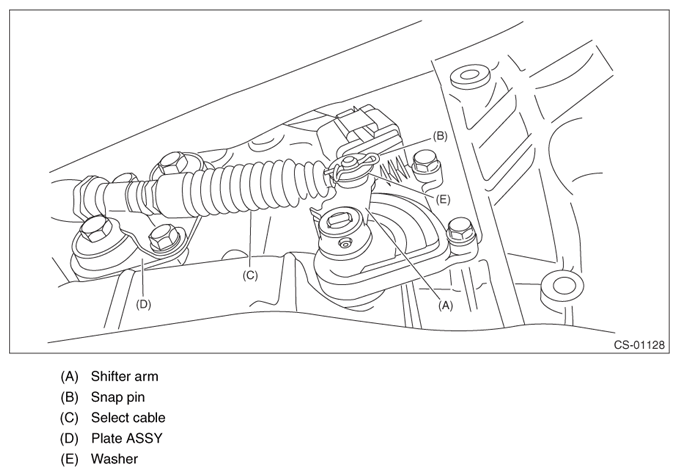

    Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable, Plate Assy And Washer
    G07913382Courtesy of SUBARU OF AMERICA, INC.
  6. Using the ST, remove the spring pin and shifter arm.

    ST 398791600 REMOVER

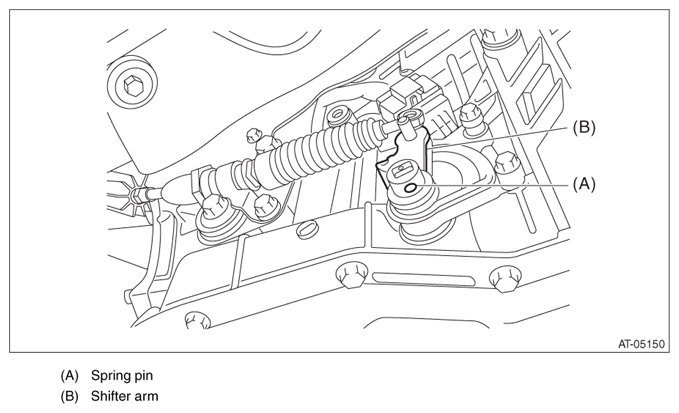

    Fig 2: Identifying Spring Pin And Shifter Arm
    G07913383Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the inhibitor harness connector from inhibitor switch.
  8. Remove the two inhibitor switch securing bolts.
    Fig 3: Locating Inhibitor Switch Mounting Bolts
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the inhibitor switch from the transmission case.
