Front Reduction Driven Gear: Disassembly

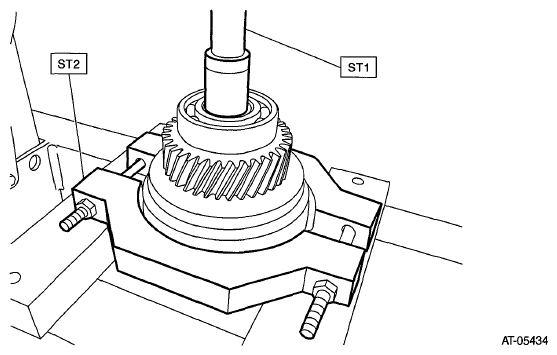

- Using the ST, remove the ball bearing, front reduction driven gear and front reduction driven shaft.
ST1 899864100 REMOVER
ST2 18767AA000 BEARING REMOVER

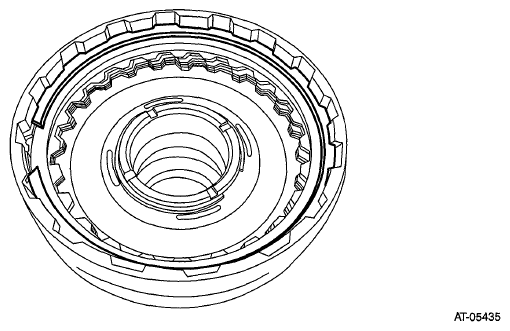

- Remove the snap ring.

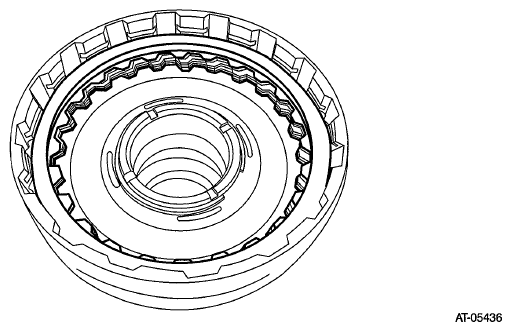

- Remove the retaining plate, drive plate, driven plate and dish plate.

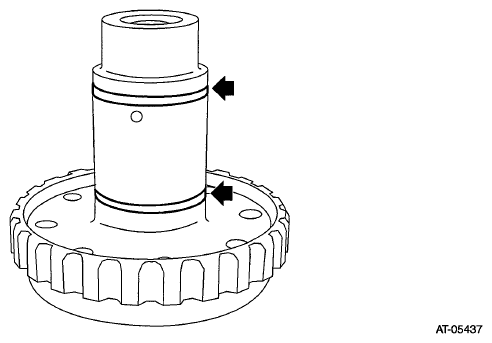

- Remove the seal ring from front reduction driven shaft.

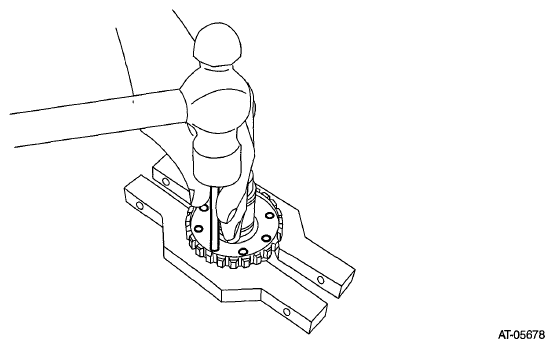

- Using the round bar with diameter of 7 mm (0.28 in), tap the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole, to remove the ball bearing.
