Front Reduction Drive Gear: Assembly

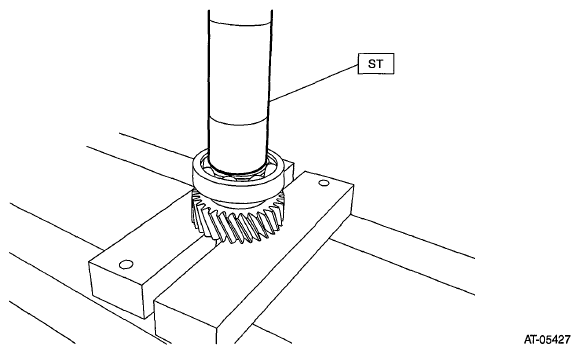

- Using the ST, install the ball bearing to front reduction drive gear.NOTE: Use a new ball bearing.
ST 18651AA000 INSTALLER

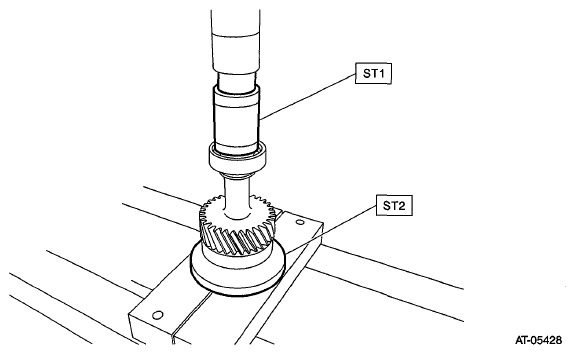

- Using ST1 and ST2, install the ball bearing to front reduction drive gear.NOTE: Use a new ball bearing.
ST1 499757002 PRESS SNAP RING
ST2 398177700 INSTALLER

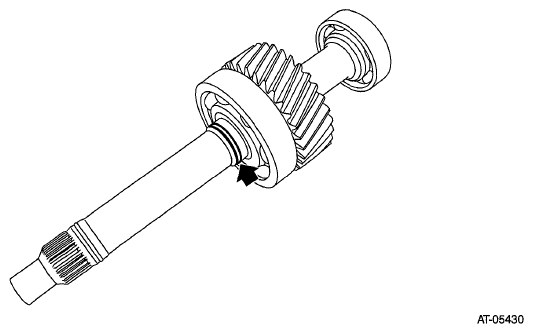

- Install the seal ring.
