Differential Case Assembly

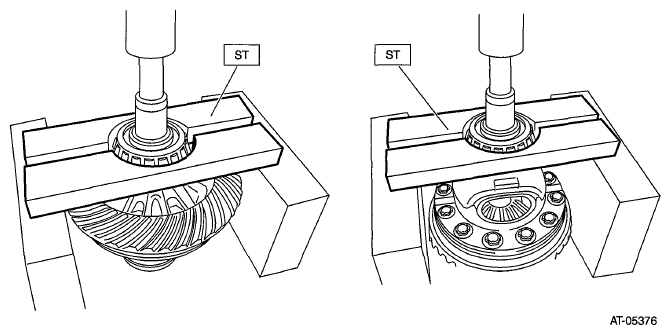

- Remove the taper roller bearing using the ST.
ST 498077000 REMOVER

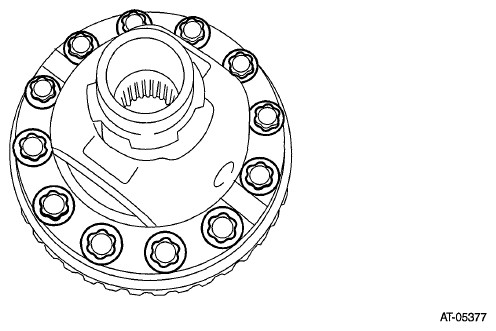

- Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

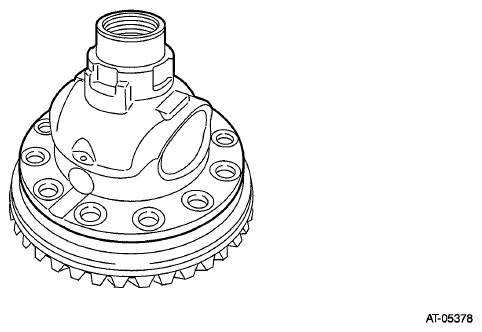

- Remove the differential case (LH).

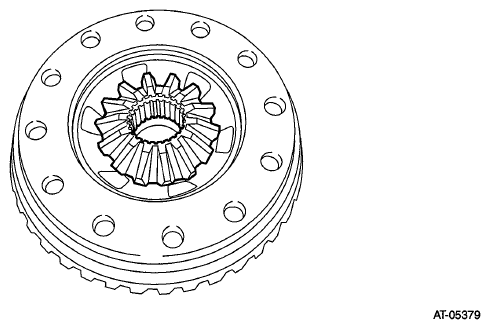

- Remove the differential bevel gear and washer from differential case.

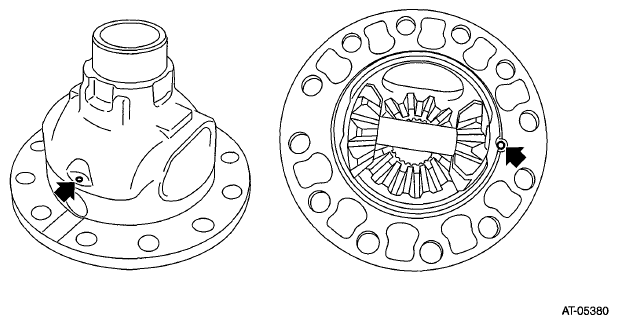

- Remove the straight pin.

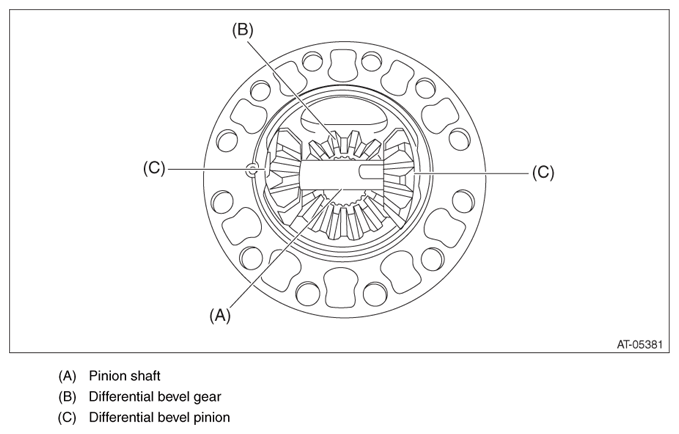

- Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.
