Side Retainer
- Press-fit the bearing outer race to side retainer.

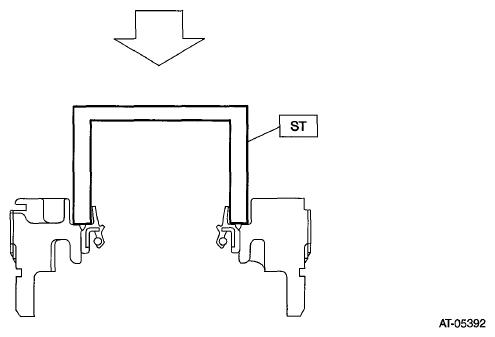

- Using the ST, install the oil seal.NOTE:
- Use a new oil seal.
- Apply differential oil to the oil seal lip.
- Oil seal has an identification mark (R, L). When installing oil seals, do not confuse the left and right.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER
- Install the O-ring.NOTE: Use new O-rings.
