2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Forward Clutch Assembly: Removal

Remove the transmission from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
Remove the extension case. Refer to , REMOVAL , Extension Case.
Remove the rear drive shaft. Refer to , REMOVAL , Rear Drive Shaft.
Remove the transfer clutch assembly. Refer to , REMOVAL , Transfer Clutch.
Remove the transfer reduction driven gear. Refer to , REMOVAL , Transfer Reduction Driven Gear.
Remove the intermediate case. Refer to , REMOVAL , Intermediate Case.
Remove the thrust needle bearing.

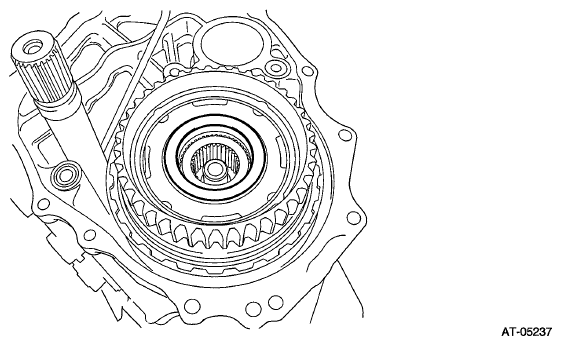

Fig 1: Identifying Thrust Needle Bearing In Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the forward clutch assembly.

Fig 2: Identifyng Forward Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the washer.

Fig 3: Identifying Washer (View 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
