Converter Case Cover: Assembly

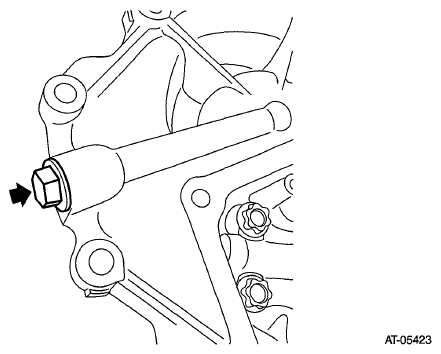

- Install the plugs.NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)

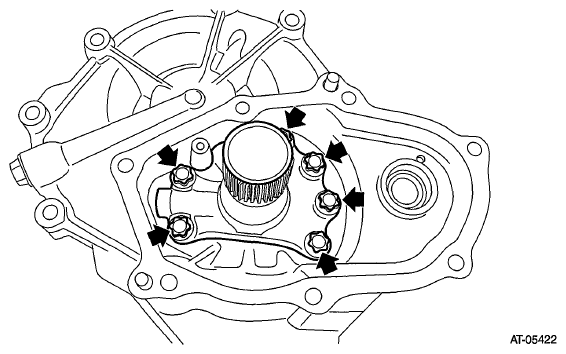

- Using ST, install the center support COMPL.
ST 18270KA010 SOCKET (E16)
Tightening torque:
21.5 N.m (2.2 kgf-m, 15.9 ft-lb)
- Install the oil pump chain cover. Refer to , INSTALLATION , Oil Pump Chain.
