2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Main Switch
- Remove the front door trim. Refer to DOOR TRIM .
- Remove the power window switch panel.
CAUTION:
Do not damage the door trim with the switch panel.

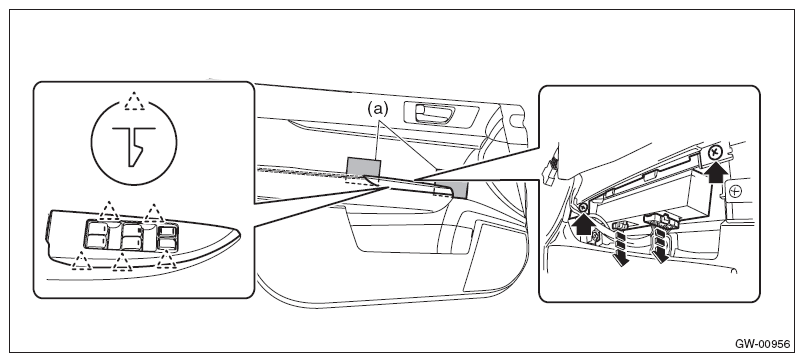

- Insert a sheet of protective paper (a) between switch panel and door trim.
- Remove the screws and disconnect the connector.
- Disconnect the claws and then remove the power window switch panel.

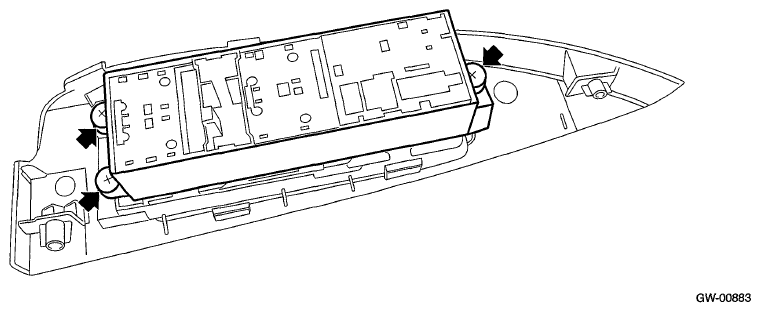

- Remove the screws and remove the power window main switch.
