Intake Manifold: Installation

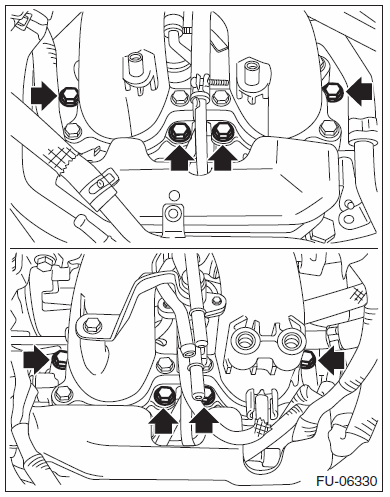

- Install the intake manifold onto cylinder heads.NOTE: Use a new gasket.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Connect the fuel delivery hose, fuel return hose, and evaporation hose.NOTE: If fuel hoses or clamps are damaged, replace them with new parts.
