Front Vehicle Speed Sensor: Installation

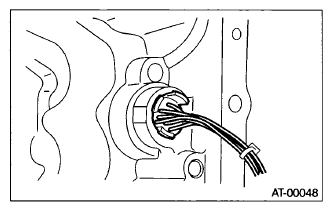

- Pass the transmission harness assembly through the hole of the transmission case.

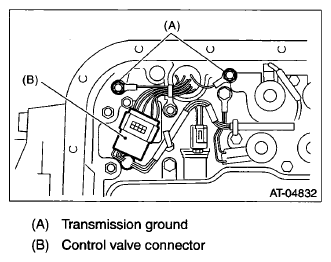

- Connect the control valve connector and transmission ground.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)

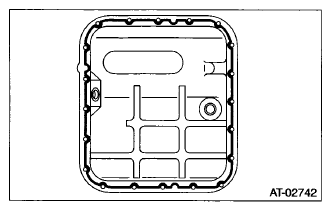

- Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020) or equivalent

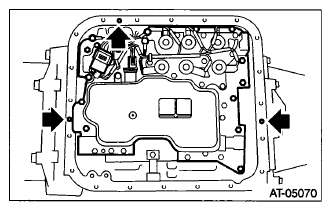

- Fill the 3 locations of the transmission case excluding the bolt holes with an ample amount of liquid gasket.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020) or equivalent
- Install the oil pan by equally tightening the bolts.
Tightening torque:
5 N.m (0.5 kgf-m, 3.7 ft-lb)
- Install the front vehicle speed sensor and torque converter turbine speed sensor.NOTE: Use new O-rings.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)

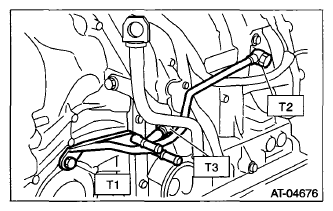

- Install the ATF cooler inlet and outlet pipes.NOTE: Use a new copper washer.
Tightening torque:
T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)
T3: 45 N.m (4.6 kgf-m, 33.2 ft-lb)
- Install the transmission rear crossmember bolt.
Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)
- Install the propeller shaft. < Ref. to INSTALLATION , Propeller Shaft. >
- Install the heat shield cover. < Ref. to INSTALLATION , Heat Shield Cover. >
- Install the center exhaust pipe, (non-turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
- Install the center exhaust pipe, (turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
- Lower the vehicle.
- Install the transmission harness connector to the stay.
- Install the pitching stopper. < Ref. to INSTALLATION , Transmission Mounting System. >
- Install the air intake boot assembly, (non-turbo model) < Ref. to INSTALLATION , Air Intake Boot. >
- Install the intercooler. (turbo model) < Ref. to INSTALLATION , Intercooler. >
- Connect the battery ground terminal.
- Fill with the same amount of ATF as drained. < Ref. to INSPECTION , Automatic Transmission Fluid. >
- Bleed the air of control valve. < Ref. to PROCEDURE , Air Bleeding of Control Valve. >
- Inspect the level of ATF. < Ref. to INSPECTION , Automatic Transmission Fluid. >
- Perform the diagnosis again. < Ref. to PROCEDURE , Learning Control. >
