2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Differential Case Assembly

Remove the taper roller bearing using the ST and a press.
ST 498077000 REMOVER

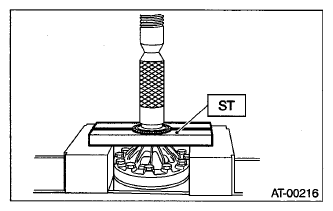

Fig 1: Removing Taper Roller Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into differential case (RH) and differential case (LH).

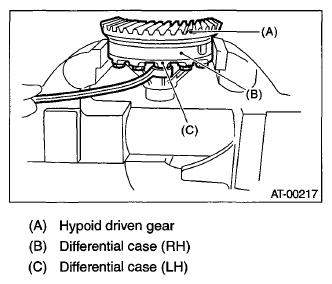

Fig 2: Hypoid Driven Gear, Differential Case (RH) And (LH)
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

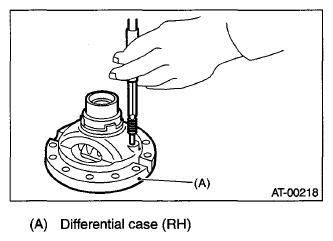

Fig 3: Pulling Out Straight Pin And Pinion Shaft
Courtesy of SUBARU OF AMERICA, INC.
