2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE
Turbo Model
- Temporarily tighten the drive plate and reinforcement drive plate.

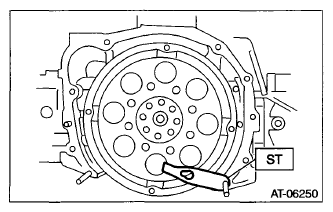

- Set the ST.
ST 498497100 CRANKSHAFT STOPPER
- Tighten the drive plate mounting bolt in three stages.
- Tighten the drive plate mounting bolt.
Tightening torque:
10 N.m (1.0 kgf-m, 7.4 ft-lb)
- Additionally tighten the drive plate mounting bolts.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)
- While checking the tightening angle with the ST, further tighten the drive plate mounting bolts.
Tightening angle:
30°±5°
ST 18854AA000 ANGLE GAUGE
- Tighten the drive plate mounting bolt.
- Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
