Turbo Model
- Remove the radiator fan and air conditioner fan. < Ref. to REMOVAL , Radiator Main Fan and Fan Motor. > < Ref. to REMOVAL , Radiator Sub Fan and Fan Motor. >
- Protect the radiator with cardboard and blanket.
- Remove the V-belts. < Ref. to REMOVAL , V-belt. >
- Remove the A/C compressor V-belt tensioner.

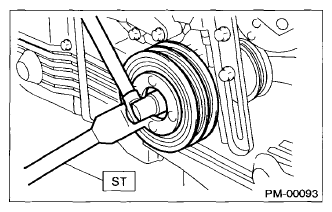

- Remove the pulley bolt. Using the ST, lock the crankshaft.
ST 499977400 CRANK PULLEY WRENCH
- Remove the crank pulley.
- Remove the A/C compressor V-belt tensioner.
- Remove the belt cover (LH).
- Remove the belt cover (RH).
- Remove the front belt cover.

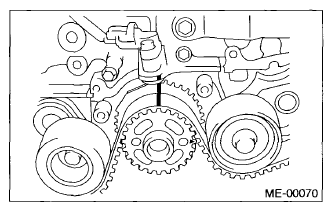

- Turn the crankshaft and align the alignment marks on crankshaft, and left and right cam sprockets with notches of belt cover and cylinder block. Use the ST to turn crankshaft.
ST 499987500 CRANKSHAFT SOCKET
