Cooling System: Inspection

Pressure:

Non-turbo model

157 kPa (1.6 kg/cm ²  , 23 psi)

Turbo model

122 kPa (1.2 kg/cm ²  , 18 psi)

• Leak from radiator
• Hose joints and other connections for leakage
  CAUTION:

  • For turbo model, inspection must be carried out at the side of coolant filler tank, not at the side of radiator.
  • Be particularly careful not to deform the filler neck of radiator when installing and removing the tester and after testing.
  • When performing this check, be sure to keep the engine stationary and fill radiator with coolant.
  • Wipe off check points before applying pressure.
  • Be careful not to spill coolant when detaching tester from radiator.
  • Do not remove the radiator cap. (turbo model)
• Non-turbo model

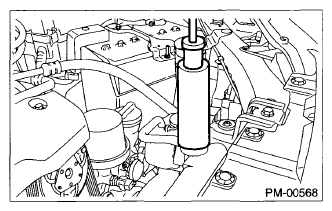

  Fig 1: Attaching Radiator Cap Tester To Filler Neck (Non-Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.
• Turbo model

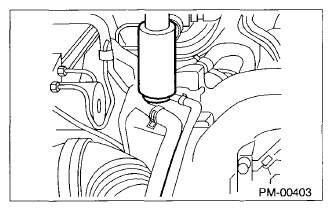

  Fig 2: Attaching Radiator Cap Tester To Filler Neck (Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

Raise the pressure until the needle of gauge stops and see if the pressure can be retained for five to six seconds. The radiator cap is normal if a pressure above the limit value has been maintained for this period. If the valve opened at the service limit or less, replace the radiator cap.

Non-turbo model radiator side and turbo model coolant filler tank side

Specification:

93 - 123 kPa (0.95 - 1.25 kg/cm ²  , 14 - 18 psi)

Service limit:

83 kPa (0.85 kg/cm ²  , 12 psi)

Radiator side on turbo models

Specification:

122 - 152 kPa (1.24 - 1.55 kg/cm ²  , 18 - 22 psi)

Service limit:

112 kPa (1.14 kg/cm ²  , 16 psi)

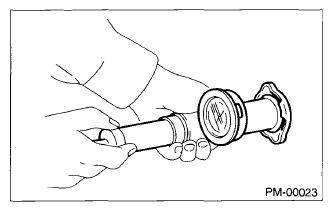

Fig 3: Checking Radiator Cap Valve Open Pressure Using Radiator Cap Tester

Courtesy of SUBARU OF AMERICA, INC.
