2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE
Turbo Model

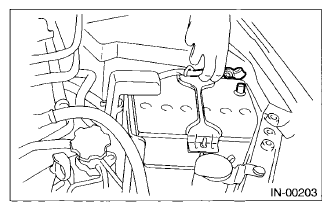

- Disconnect the ground cable from battery.
- Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >

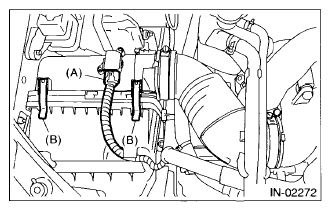

- Disconnect the connector (A) from mass airflow and intake air temperature sensor.
- Remove the clip (B) from the air cleaner case.

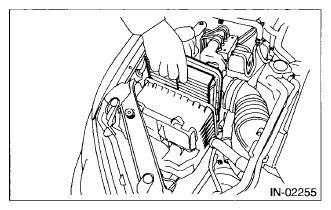

- Open the air cleaner case, and remove the air cleaner element.
- Install in the reverse order of removal.CAUTION: Be sure to use SUBARU genuine air cleaner element suitable to the engine type. Using other air cleaner element may affect the engine performance.
