Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

1. Remove the glove box lower cover. Refer to REMOVAL , Glove Box.
2. Remove the lower inner trim of passenger's side. Refer to REMOVAL , Lower Inner Trim
3. Turn over the floor mat of passenger's seat.
4. Remove the protect cover.

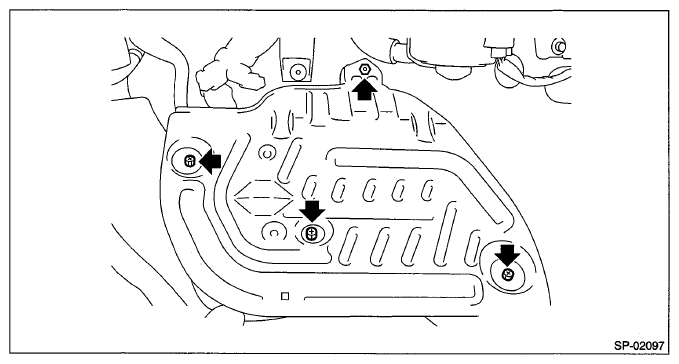

   Fig 1: Locating Protect Cover Screws

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the nuts and bolts which hold the ECM to the bracket.

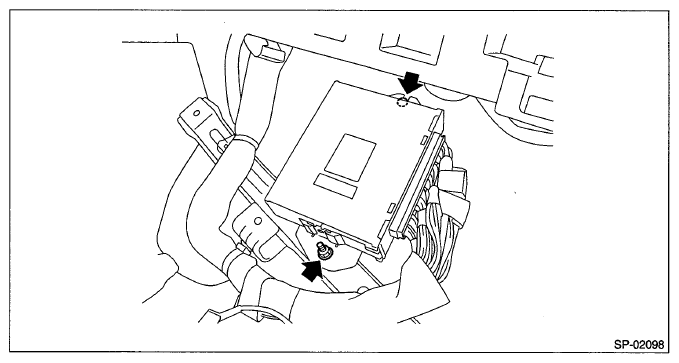

   Fig 2: Locating ECM Nut And Bolt

   Courtesy of SUBARU OF AMERICA, INC.
6. Turn the ignition switch to ON. (engine OFF)
7. Measure the voltage between ECM connector terminals.

   Main sensor side

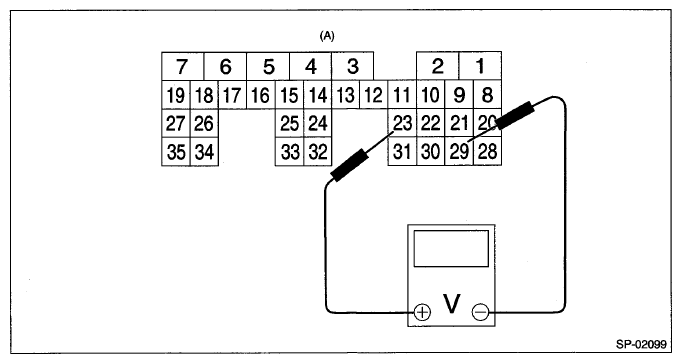

   Fig 3: Measuring Voltage Between ECM Connector Terminals (Main Sensor Side)

   Courtesy of SUBARU OF AMERICA, INC.

   Sub sensor side

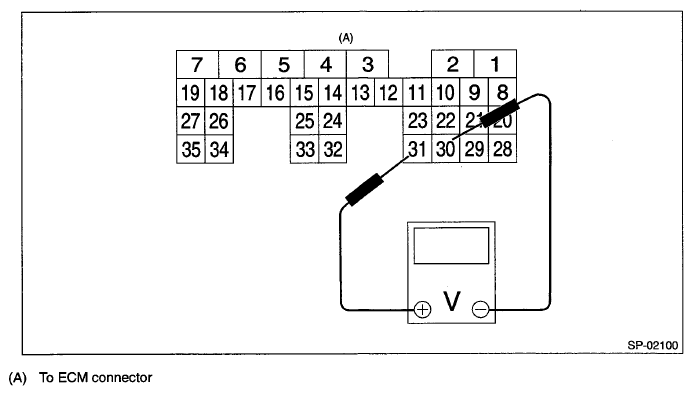

   Fig 4: Measuring Voltage Between ECM Connector Terminals (Sub Sensor Side)

   Courtesy of SUBARU OF AMERICA, INC.
   TERMINAL REFERENCE CHART



   Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
   Main	Not depressed (Full closed)	23 (+) and 29 (-)	0.4 - 1.0 V
   	Depressed (Full opened)		2.4 - 3.7 V
   Sub	Not depressed (Full closed)	31 (+) and 30 (-)	0.3 - 1.1 V
   	Depressed (Full opened)		2.3 - 3.8 V

8. After inspection, install the related parts in the reverse order of removal.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
