2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Oil Flow Control Solenoid Valve: Assembly

Install the oil flow control solenoid valve.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Apply liquid gasket to the two bolts securing oil return cover.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent
Attach the oil return cover and gasket.
NOTE: Use a new gasket.

Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

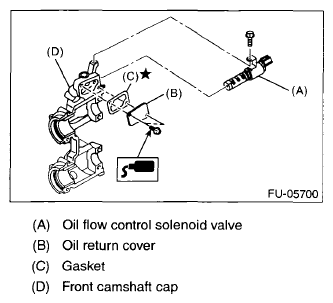

Fig 1: Identifying Front Camshaft Cap, Oil Flow Control Solenoid Valve, Oil Return Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
