Connect the connectors to the engine, and install the engine harness.
NOTE: Refer to "COMPONENT" of "General Description" for how to connect the engine harness connectors. < Ref. to ENGINE HARNESS , COMPONENT. >

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

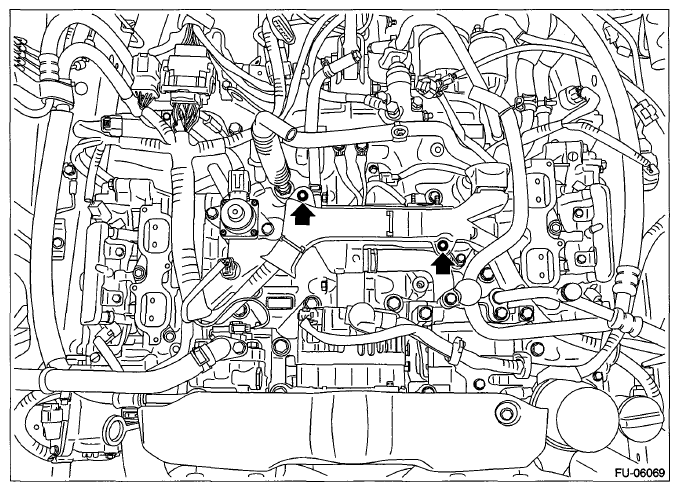

Fig 1: Locating Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold to the tumble generator valve assembly.
NOTE: Use a new gasket.

Tightening torque:

8.3 N.m (0.8 kgf-m, 6.1 ft-lb)

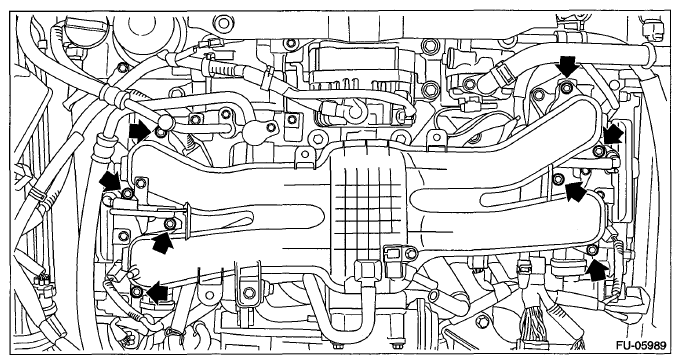

Fig 2: Locating Tumble Generator Valve Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel delivery hose (A) and evaporation hose (B).

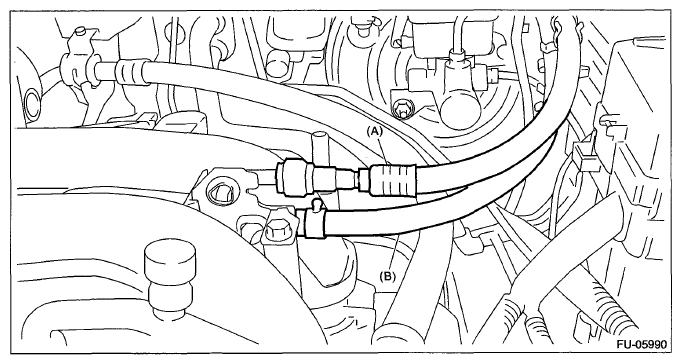

Fig 3: Connecting Fuel Delivery Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel delivery pipe to the fuel pipe LH.
- Connect the quick connector as shown in the illustration.
  CAUTION:
  - Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  - When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
  - When it is difficult to lock the slider, check that the pipe is fully inserted.
  - Make sure that the quick connector is securely connected.

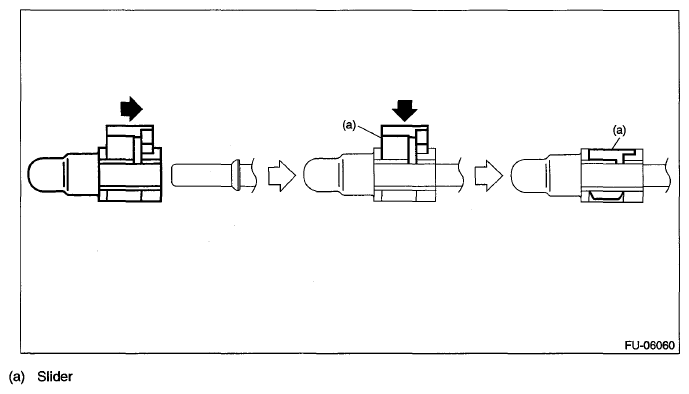

    Fig 4: Connecting Fuel Delivery Pipe To Fuel Pipe
    Courtesy of SUBARU OF AMERICA, INC.
