2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Fuel Injector: Removal

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE. >
  2. Disconnect the ground cable from battery.

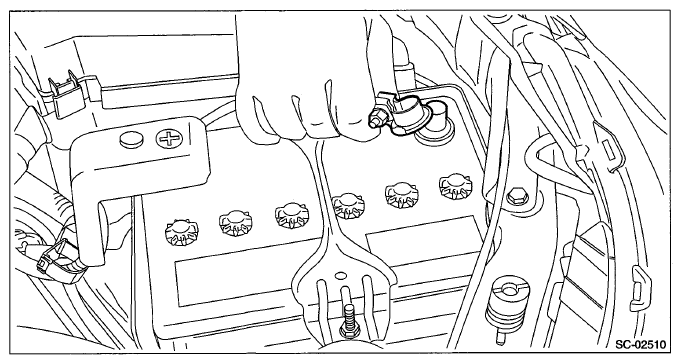

    Fig 1: Disconnecting Ground Cable From Battery
    G07664744Courtesy of SUBARU OF AMERICA, INC.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Remove the clip (A) from the air intake boot.
  5. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
  6. Loosen the clamp (C) which connects the air intake boot and throttle body.
    Fig 2: Identifying Air Intake Boot Clip And Clamps
    G00522287Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake boot from the throttle body, and move it to the left side wheel apron. (RH side only)
    Fig 3: Removing Air Intake Boot From Throttle Body
    G00522288Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) which holds the mass air flow and intake air temperature sensor harness. (RH side only)
  9. Remove the suction hose (C) from the air cleaner case (rear). (RH side only)

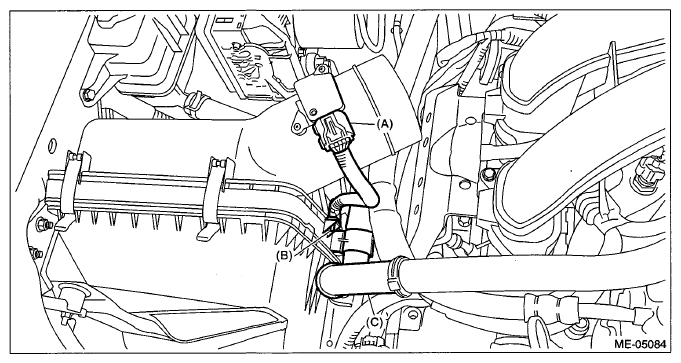

    Fig 4: Mass Air Flow And Intake Air Temperature Sensor Connector And Suction Hose
    G07664745Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the air cleaner case (rear). (RH side only)

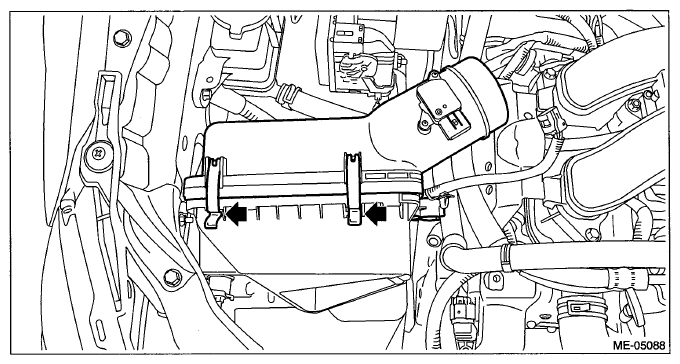

    Fig 5: Locating Air Cleaner Case Clamps
    G07664746Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the intake manifold protector.
    • LH side

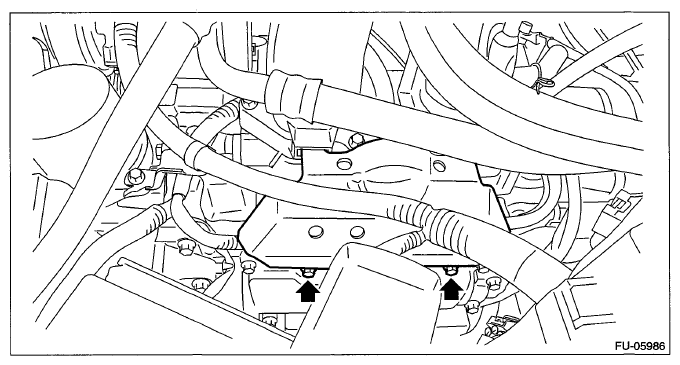

      Fig 6: Locating Intake Manifold Protector Mounting Bolts
      G07664747Courtesy of SUBARU OF AMERICA, INC.
    • RH side

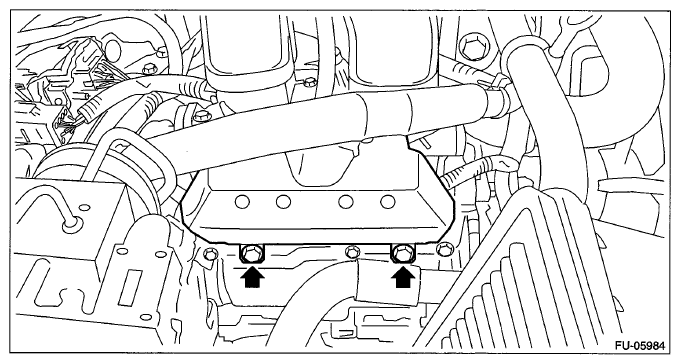

      Fig 7: Locating Intake Manifold Protector Mounting Bolt
      G07664748Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the connectors (A) from fuel injector.
  13. Remove the bolts which hold fuel pipe onto the cam carrier.

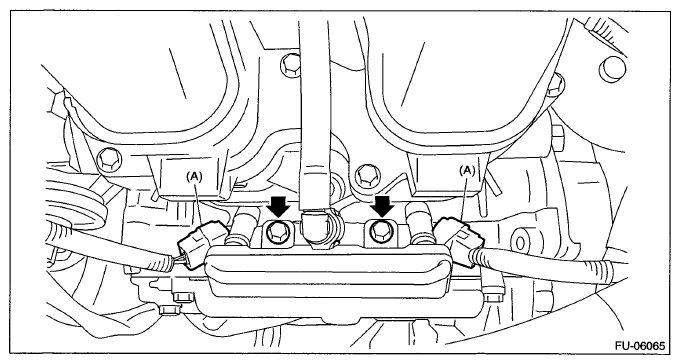

    Fig 8: Locating Cam Carrier Mounting Bolts
    G07664749Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the fuel injector.

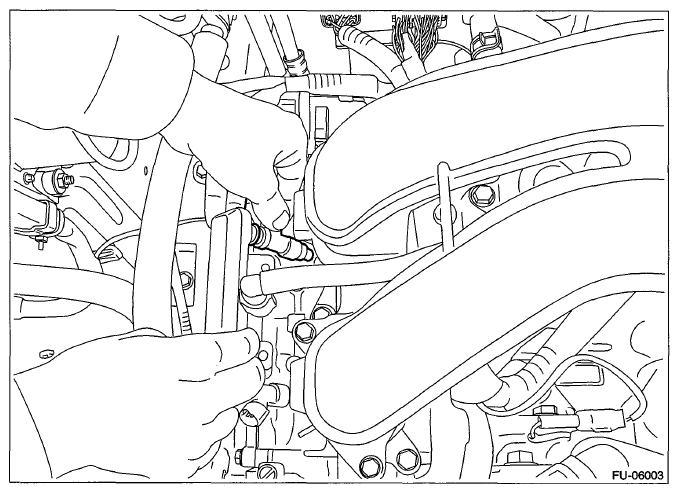

    Fig 9: Removing Fuel Injector
    G07664750Courtesy of SUBARU OF AMERICA, INC.
