2012 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal

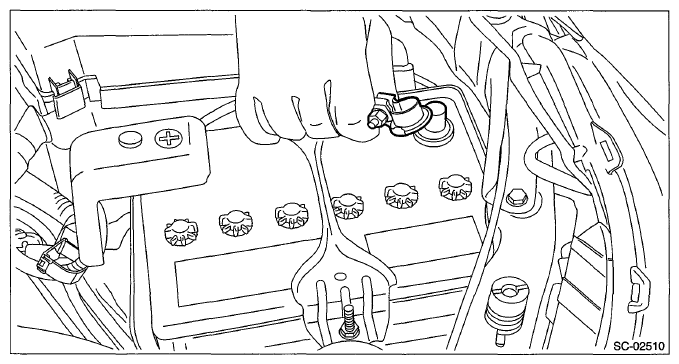

- Disconnect the ground cable from battery.
- Remove the glove box lower cover. < Ref. to REMOVAL , Glove Box. >
- Remove the lower inner trim of passenger's side. < Ref. to REMOVAL , Lower Inner Trim. >
- Turn over the floor mat of passenger's seat.

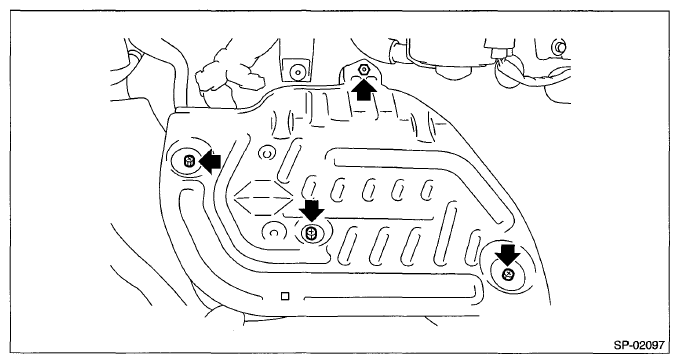

- Remove the protect cover.

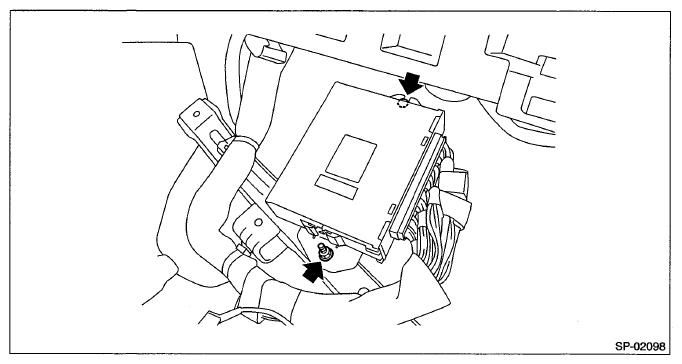

- Remove the nuts and bolts which hold the ECM to the bracket.
- Disconnect the ECM connectors, and take out the ECM.
