2010 Subaru Tribeca LimitedFACTORY OEM SERVICE PROCEDURE

Identification Number And Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

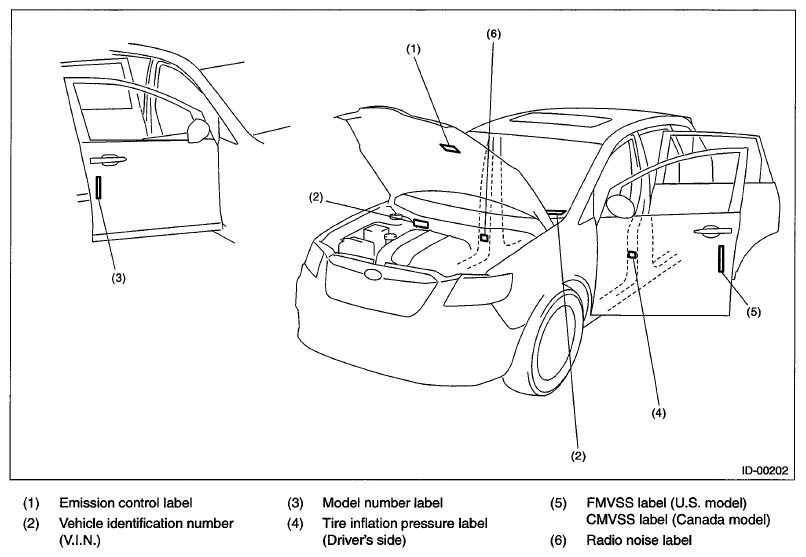

Fig 1: Identifying Identification Number Location And Label Locations
Courtesy of SUBARU OF AMERICA, INC.
ENGINE

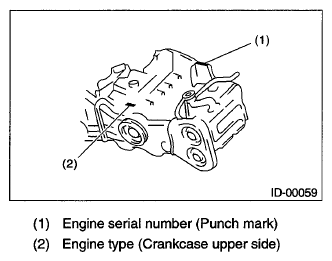

Fig 2: Identifying Engine Serial Number And Engine Type Locations
Courtesy of SUBARU OF AMERICA, INC.
AUTOMATIC TRANSMISSION

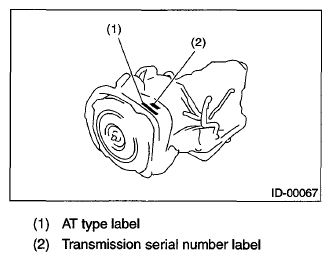

Fig 3: Identifying Transmission Serial Number Locations
Courtesy of SUBARU OF AMERICA, INC.
REAR DIFFERENTIAL

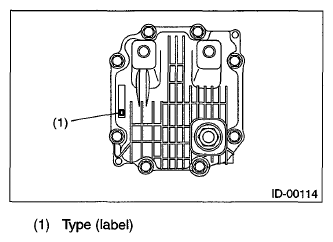

Fig 4: Identifying Rear Differential Label
Courtesy of SUBARU OF AMERICA, INC.

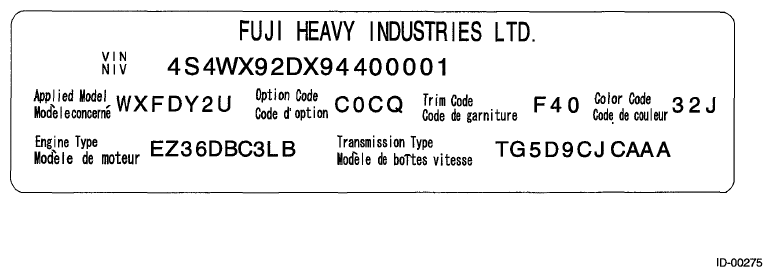

MODEL NUMBER LABEL

Fig 5: Identifying Model Number Label
Courtesy of SUBARU OF AMERICA, INC.
