Install the select cable to plate assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Locating Select Cable Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
- CVT model

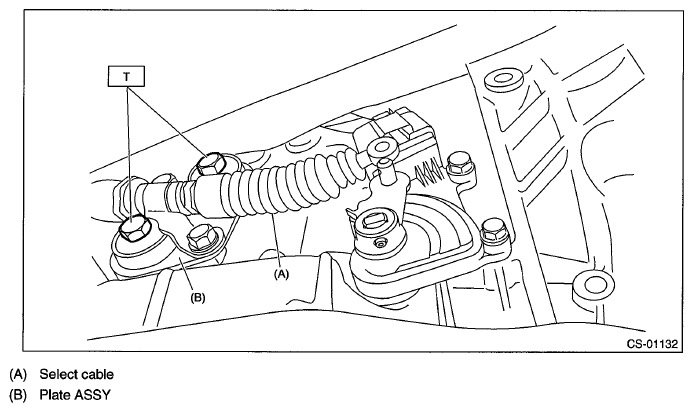

  Fig 2: Identifying Select Cable And Plate Assy (CVT Model)
  Courtesy of SUBARU OF AMERICA, INC.
- AT model

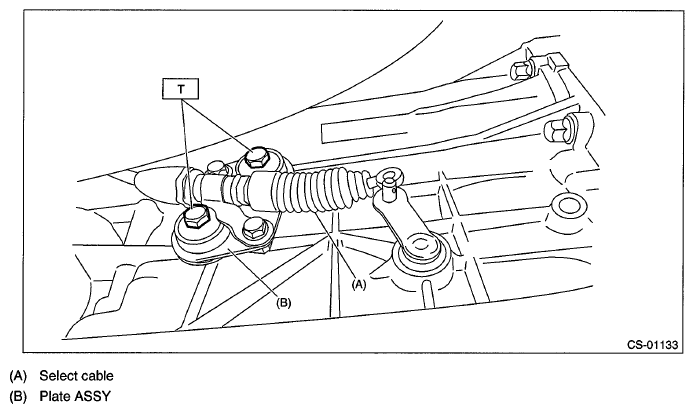

  Fig 3: Identifying Select Cable And Plate Assy (AT Model)
  Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.
- CVT model

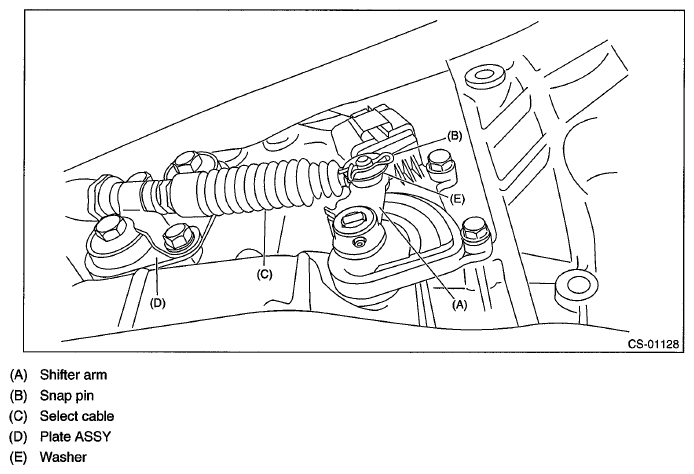

  Fig 4: Identifying Washer And Snap Pin With Shifter Arm (CVT Model)
  Courtesy of SUBARU OF AMERICA, INC.
- AT model

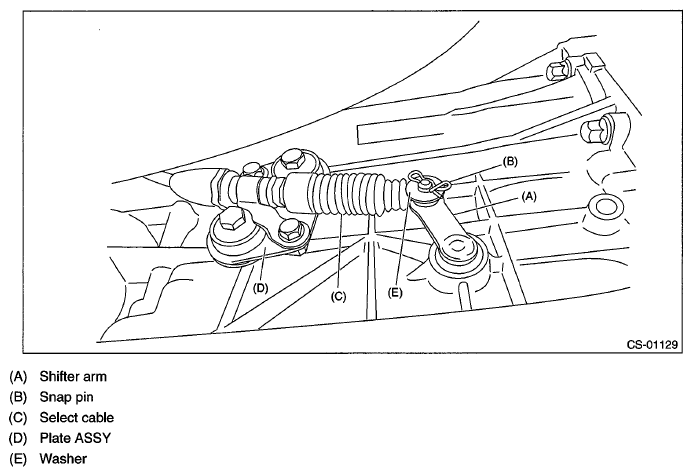

  Fig 5: Identifying Washer And Snap Pin With Shifter Arm (AT Model)
  Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

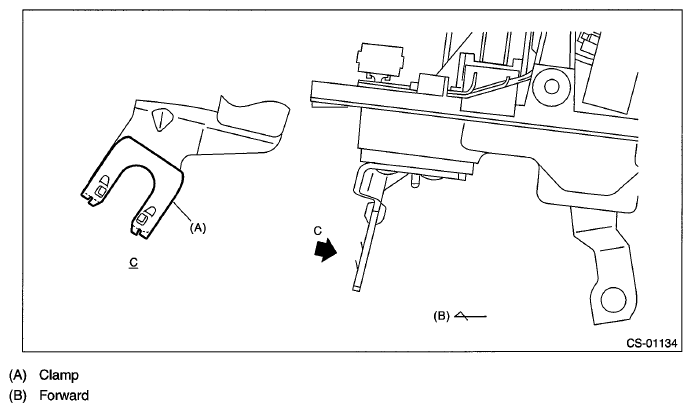

Fig 6: Identifying Clamp Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 7: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to ADJUSTMENT , Select Cable.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 8: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe and rear exhaust pipe.
- 2.5 L model
  Ref. to INSTALLATION , Front Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe.
- 3.6 L model
  Ref. to INSTALLATION , Front Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe.
