Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

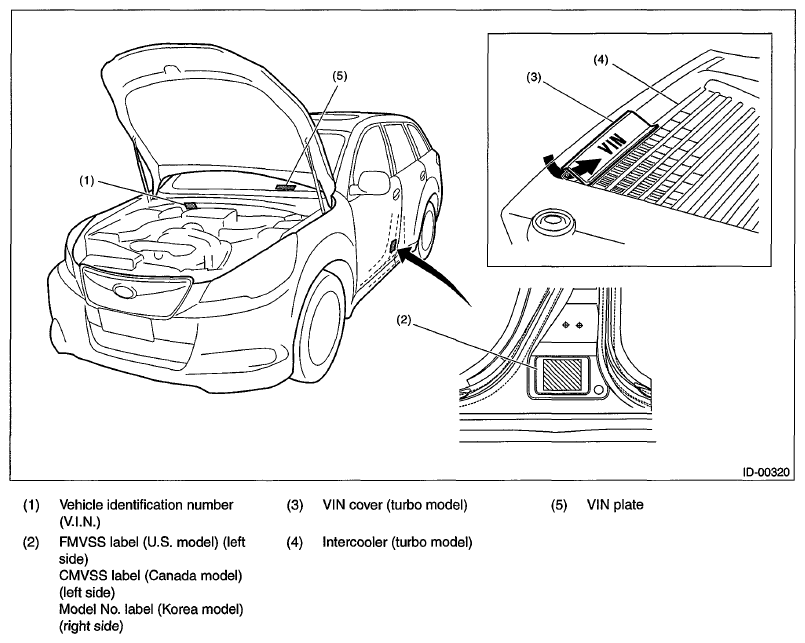

  Fig 1: Identifying Identification Number And Label Locations

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE

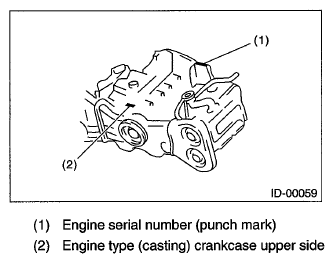

  Fig 2: Identifying Engine Serial Number And Engine Type Crankcase Side

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION

  5AT

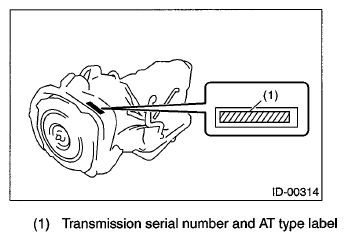

  Fig 3: Identifying Transmission Serial Number And AT Type Label (5AT)

  Courtesy of SUBARU OF AMERICA, INC.

  CVT

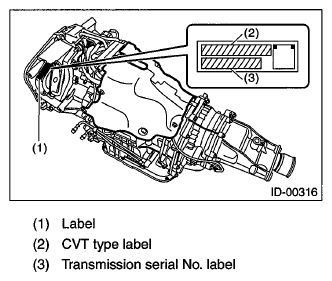

  Fig 4: Identifying Transmission Serial Number And CVT Type Label (CVT)

  Courtesy of SUBARU OF AMERICA, INC.
• MANUAL TRANSMISSION

  6MT

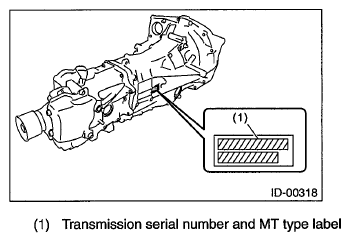

  Fig 5: Identifying Transmission Serial Number And MT Type Label (6MT)

  Courtesy of SUBARU OF AMERICA, INC.
• REAR DIFFERENTIAL

  T-type

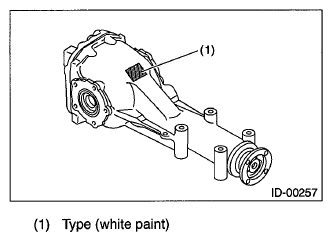

  Fig 6: Identifying Rear Differential (T-type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA1-type

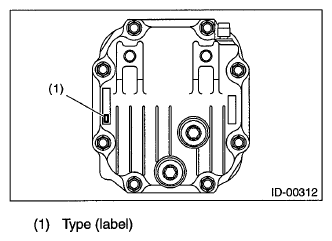

  Fig 7: Identifying Rear Differential (VA1-type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA2-type

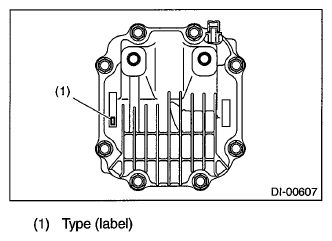

  Fig 8: Identifying Rear Differential (VA2-type)

  Courtesy of SUBARU OF AMERICA, INC.
• FMVSS LABEL, CMVSS LABEL

  Example

  Fig 9: Identifying FMVSS Label And CMVSS Label

  Courtesy of SUBARU OF AMERICA, INC.
• MODEL NUMBER LABEL
  Fig 10: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
