2010 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Transmission Mounting

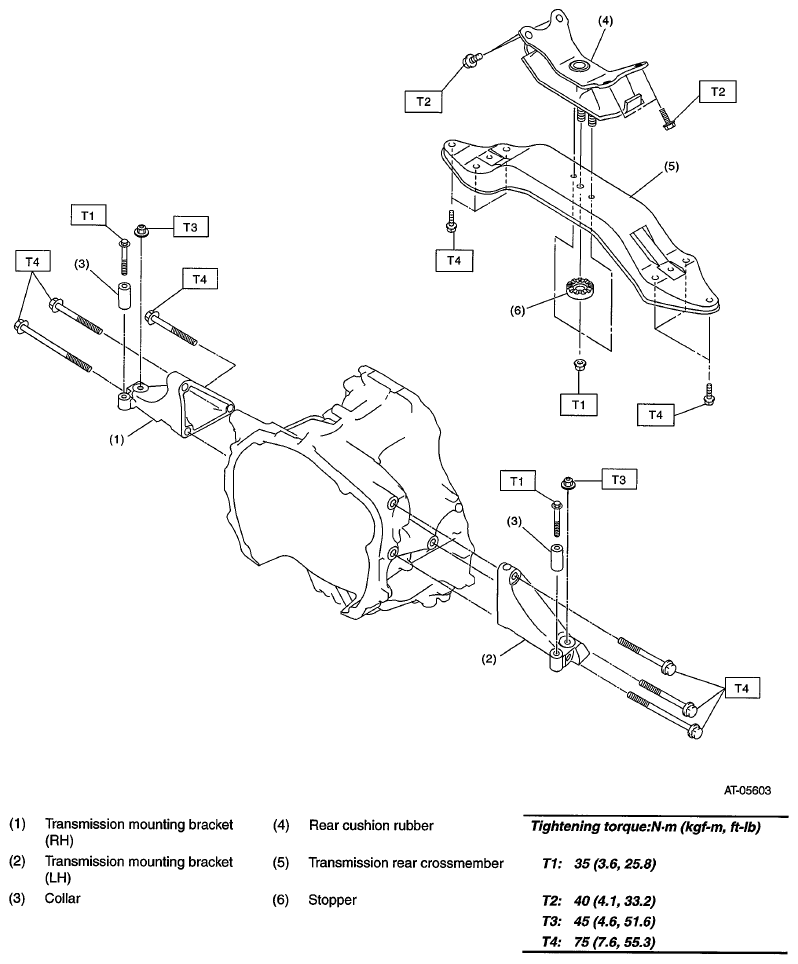

Fig 1: Transmission Mounting With Torque Specifications
G06654293Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)Β

T1: 35 (3.6,25.8)Β

T2: 40 (4.1,33.2)Β

T3: 45 (4.6,51.6)Β

T4: 75 (7.6,55.3)Β
