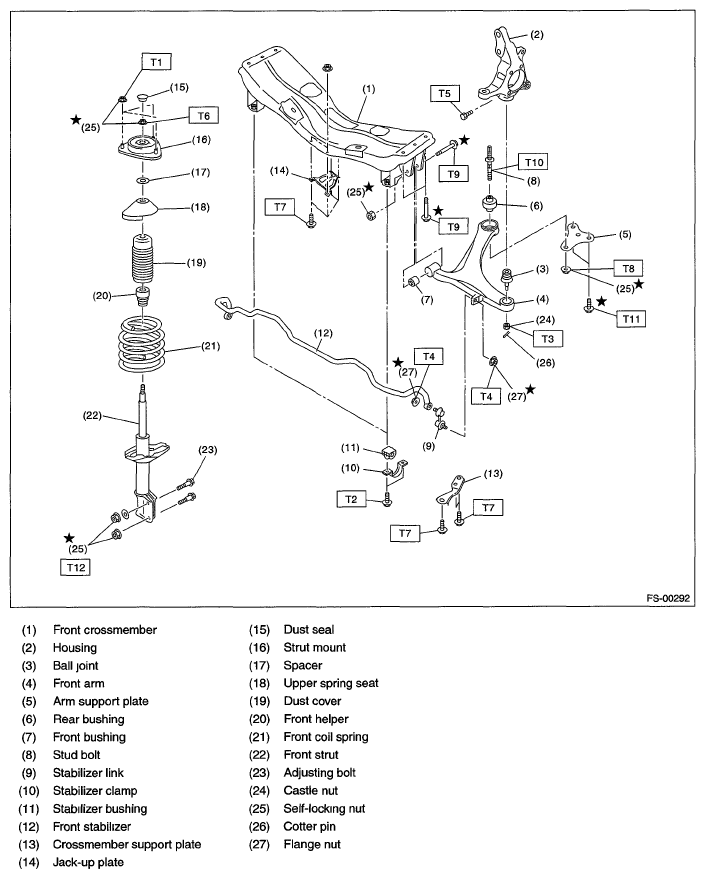

Components With Torque Specifications
Tightening torque: N.m (kgf-m, ft-lb)
T1: 20 (2.0, 14.5)
T2: 25 (2.5, 18.1)
T3: 45 (4.6, 33.2)
T74: 60 (6.1, 44.3)
T5: 50 (5.1, 36.9)
T6: 55 (5.6, 40.6)
T7: 60 (6.1, 44.3)
T8: 88 (9.0, 64.9)
T9: 95 (9.7, 70.1)
T10: 110 (11.2, 81.1)
T11: 150 (15.3, 110.6)
T12: 155 (15.8, 114.3)
