Remove the engine ground terminal from the fuel pipe protector LH, and remove the fuel pipe protector LH from the intake manifold.

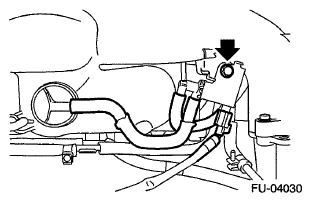

Fig 1: Locating Fuel Pipe Protector LH From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH from the intake manifold.

Fig 2: Locating Fuel Pipe Protector RH From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hose and the connector from the purge control solenoid valve 1, and remove the purge control solenoid valve 1 from the intake manifold.

Fig 3: Locating Purge Control Solenoid Valve And Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the filter assembly.

Fig 4: Identifying Filter Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the solenoid valve bracket assembly from the intake manifold, and disconnect the connector from the wastegate control solenoid valve, manifold absolute pressure sensor and purge control solenoid valve 2.

Fig 5: Locating Manifold Absolute Pressure Sensor And Purge Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hose of the purge control solenoid valve 2 from the intake duct and fuel pipe assembly.
Disconnect the connectors from the throttle position sensor.

Fig 6: Locating Connectors From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body from the intake manifold.

Fig 7: Locating Throttle Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel injector and the tumble generator valve assembly.

Fig 8: Locating Tumble Generator Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV pipe (A), harness assembly (B) and intake duct (C) from the intake manifold.

Fig 9: Locating PCV Pipe, Harness Assembly And Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the fuel injector pipe LH onto the front side of intake manifold, and disconnect the pressure regulator vacuum hose from the intake manifold.

Fig 10: Locating Intake Manifold And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds fuel injector pipe onto intake manifold.
- RH side

  Fig 11: Locating Intake Manifold Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 12: Locating Intake Manifold Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.
- RH side

  Fig 13: Removing Fuel Injector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 14: Removing Fuel Injector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds fuel injector pipe onto intake manifold.

Fig 15: Locating Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures fuel injector pipe RH onto the lower side of the intake manifold.

Fig 16: Locating Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which holds the fuel hose to the fuel injector pipe, and then disconnect the fuel hose from pipe.

Fig 17: Identifying Fuel Hose From Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector pipe.
Remove the tumble generator valve assembly from the intake manifold.

Fig 18: Locating Tumble Generator Valve Assembly And Bolts
Courtesy of SUBARU OF AMERICA, INC.
