2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

  1. Shift the select lever to "N" range.
  2. Remove the indicator bulb.
    Fig 1: Removing Indicator Bulb
    G05019668Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the grip.
  4. Remove the indicator assembly.
    Fig 2: Locating Indicator Assembly
    G05019669Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the blind.
    Fig 3: Identifying Blind
    G05019670Courtesy of SUBARU OF AMERICA, INC.
  6. Shift the select lever to the "N" range, and then remove the detent spring.
    Fig 4: Identifying Detent Spring
    G05019671Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bolt, and separate the guide plate upper from plate lower.

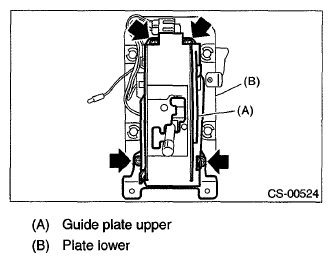

    Fig 5: Locating Guide Plate Bolts
    G06336932Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the connector from the guide plate upper.
    Fig 6: Removing Connector From Guide Plate Upper
    G05019673Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the sheet, and remove the shift lock solenoid assembly.
    Fig 7: Identifying Shift Lock Solenoid Assembly
    G05019674Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the switch assembly.
    Fig 8: Identifying Switch Assembly
    G05019675Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the check plate.
    Fig 9: Identifying Check Plate
    G05019676Courtesy of SUBARU OF AMERICA, INC.
  12. Raise the claw of connector.
    Fig 10: Raising Claw Of Connector
    G05019677Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the terminals of the SPORT mode switch and shift lock solenoid assembly from the connector, using a flat tip screwdriver with a thin tip.

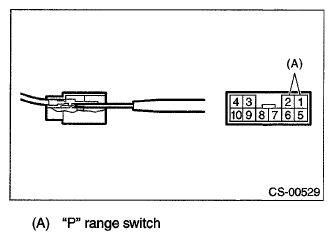

    Fig 11: Disconnecting Terminals Of SPORT Mode Switch And Shift Lock Solenoid Assembly From Connector
    G06336938Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the cable bracket.
    Fig 12: Locating Cable Bracket Bolt
    G05019679Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the gasket.
    Fig 13: Identifying Cover
    G05019680Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the select lever assembly
    Fig 14: Locating Select Lever Assembly Bolt
    G05019681Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the clamp, and remove the arm assembly and bushing plate.

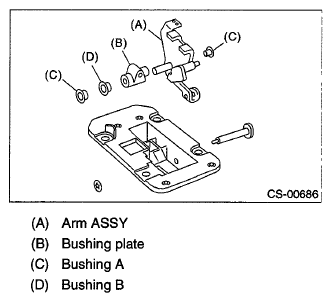

    Fig 15: Identifying Arm Assy, Bushing Plate And Bushing
    G06336942Courtesy of SUBARU OF AMERICA, INC.
