2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Select Lever: Assembly
- Clean all the parts before assembly.
- Apply NIGTIGHT LYW No. 2 grease or the equivalent to each part. Ref. to AT SELECT LEVER , COMPONENT, General Description.
- Assemble in the reverse order of disassembly.NOTE:
- Ref. to AT SELECT LEVER , COMPONENT, General Description.

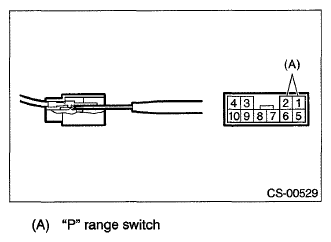

- Connect the switch terminal to the connector.
- After completing installation, shift the select lever from "P" range to "D" range, then check whether the indicator and select lever matches, whether the pointer and position mark matches and what the operating force is.
