2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Select Cable: Adjustment

  1. Set the vehicle on a lift.
  2. Shift the select lever to "N" range.
  3. Lift up the vehicle.
  4. Remove the rear exhaust pipe and muffler.
    • SOHC model

      Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.

    • DOHC turbo model

      Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.

    • DOHC 3.0 L model

      Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.

  5. Remove the heat shield cover.
    Fig 1: Identifying Heat Shield Cover
    G05019661Courtesy of SUBARU OF AMERICA, INC.
  6. Loosen the adjusting nuts on both sides.

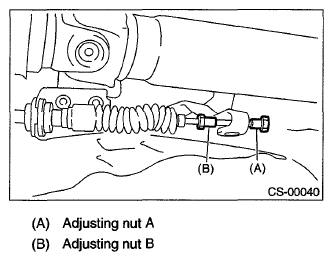

    Fig 2: Identifying Adjusting Nuts
    G06336960Courtesy of SUBARU OF AMERICA, INC.
  7. Turn adjusting nut B until it lightly touches the connector.

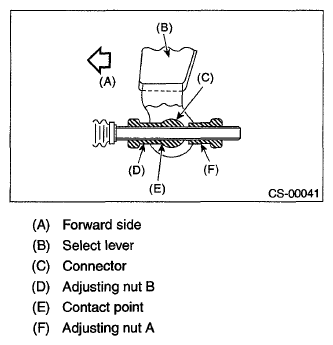

    Fig 3: Identifying Adjusting Nuts, Contact Point And Connector
    G06336961Courtesy of SUBARU OF AMERICA, INC.
  8. Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

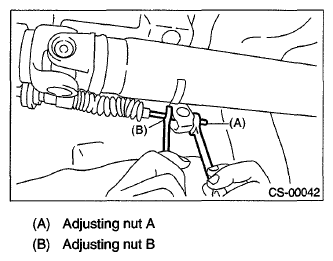

    Fig 4: Tightening Adjusting Nut A
    G06336962Courtesy of SUBARU OF AMERICA, INC.
  9. After the completion of adjustment, confirm that the select lever operates normally at all ranges.
  10. Install in the reverse order of removal.
