2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Extension Case: Installation
- Apply Vaseline to the contact surface, and attach the selected thrust needle bearing to the end surface of the reduction drive gear.NOTE: Install the thrust needle bearing in the correct direction.
- Install a new gasket.
- Install the extension case to transmission case.
- Tighten bolts to secure the extension case.
Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

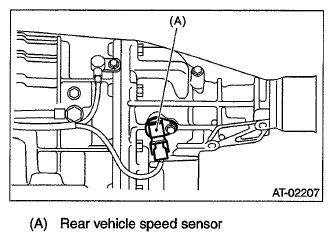

- Install the rear vehicle speed sensor.
Tightening torque: 7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Install the transmission assembly. Refer to INSTALLATION , Automatic Transmission Assembly.
