2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Front Stabilizer: Installation
Install in the reverse order of removal.
CAUTION:
- Be sure to use a new self-locking nut.
- Ensure the stabilizer bushing and stabilizer have the same identification colors.
- Install the stabilizer bushing (front crossmember side) while aligning it with the paint mark on stabilizer.

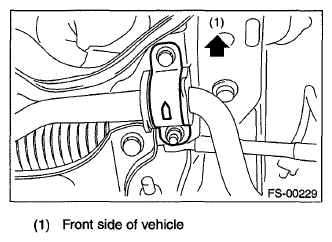

- The stabilizer bracket has a set orientation. Install it with the arrow mark facing the upper side of the vehicle.
Tightening torque:
Stabilizer link:
45 N.m (4.6 kgf-m, 33.2 ft-lb)
Stabilizer bracket:
25 N.m (2.5 kgf-m, 18.1 ft-lb)
