2009 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Components With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

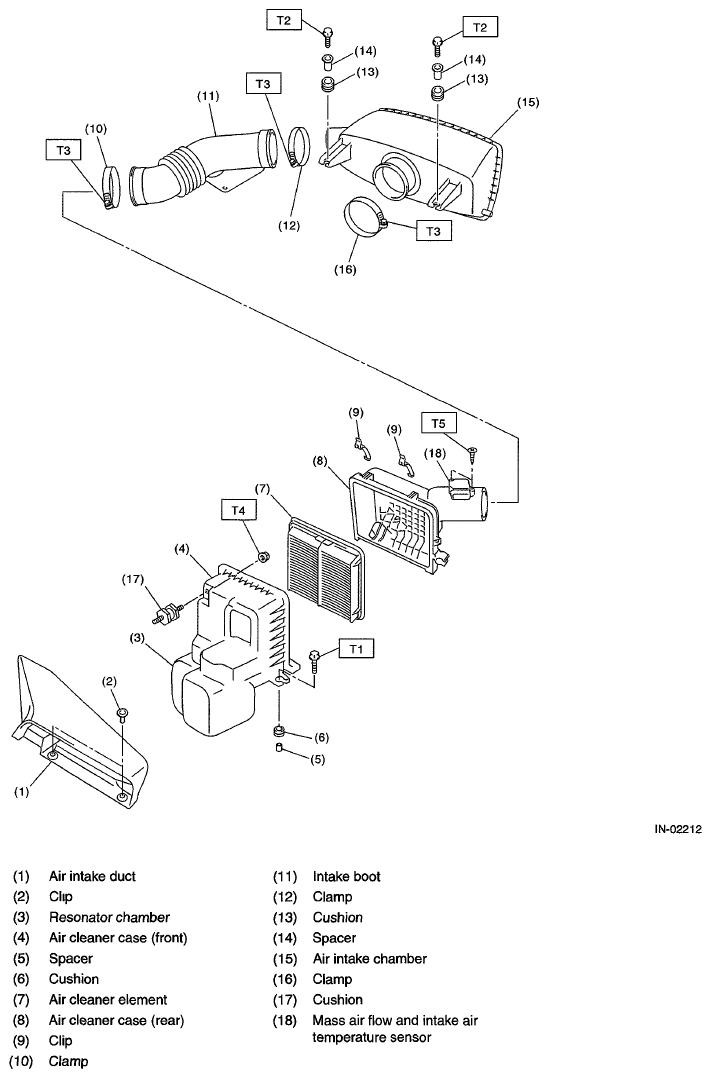

Fig 1: Identifying Intake (Induction) Component
G06336275Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6(0.6,4.4)

T2: 6.5(0.7,4.8)

T3: 3(0.3,2.2)

T4: 7.5(0.8,5.5)

T5: 1(0.1,0.7)
